Newest Outdoor Rental LED Screen P1.5625 P1.953 P2.6 Mm 7680 Hz Panel Curved Shape Screen For Stage Show Event and Outdoor advertising machine
Newest Outdoor Rental LED Screen P1.5625 P1.953 7680 Hz Rate Panel Curved Shape Screen For Stage Show Event and Outdoor advertising machine
Model Number:outdoor P1.5625, P1.953, P2.604 mm
Product Creative Concept:
1. There are three point spacing product specifications available for outdoor rental: P1.5625, P1.953, and P2.6mm.

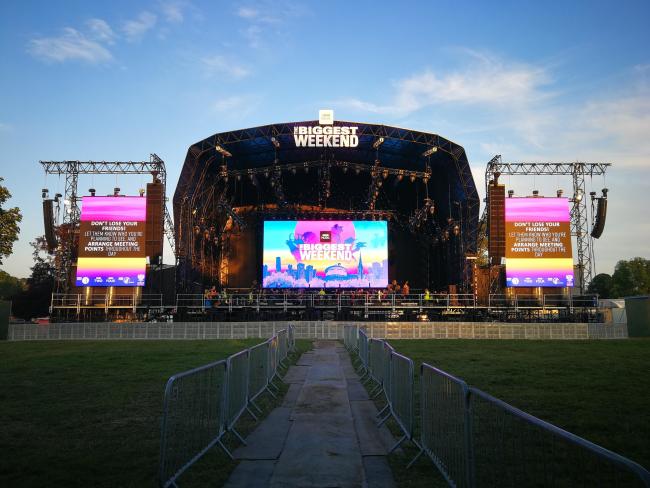

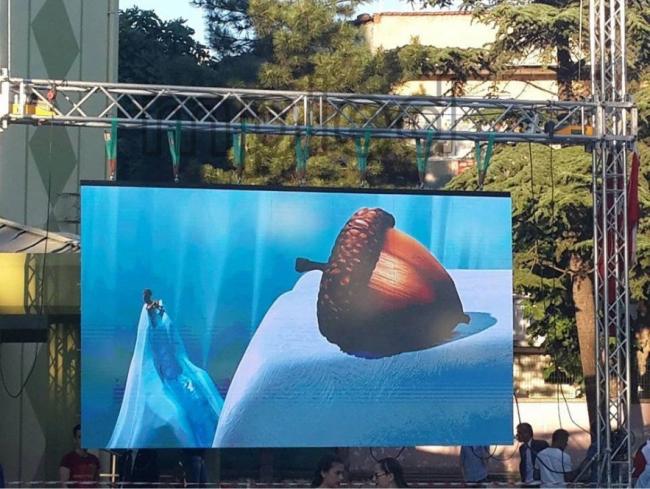

2. Widely used in various scenarios such as outdoor concerts, commercial press conferences, roadshows, etc.
3,One hand operation, 3 seconds to complete the installation.

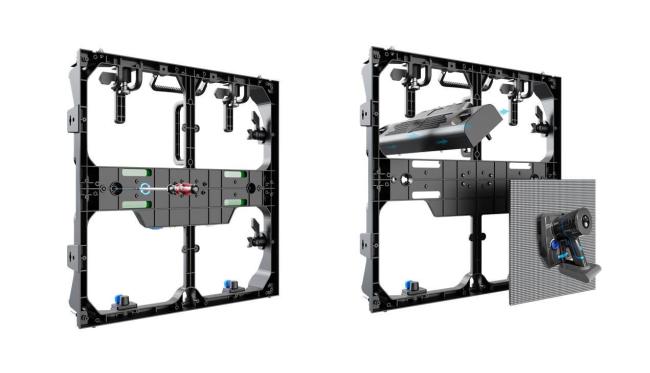

The handle is located in the middle of the cabinet, convenient for one-hand operation, The upper and lower lock can be operated with one hand, and it can be automatically inserted and installed quickly.
4,Front maintenance: remove the magnetic module and use a hexagonal screwdriver to unscrew the knob hole to remove the power box.
Rear maintenance: an independent modular design, allowing for easy front & rear maintenance of modules, power supplies, and receiving cards
5. The product has a brightness of 4500nits and a refresh rate of 7680Hz. When combined with a 125 * 250mm small module and a special 90 degree corner design, it can be used as an outdoor 360 degree vertical circular advertising machine, adding more application scenarios.
| Outdoor Product | Gprime-1.5 | Gprime-1.9 | Gprime-2.6 |
| Pixel Pitch (mm) | P1.5625 | P1.953 | P2.604 |
| Density pixels/㎡ | 409600 | 262144 | 147456 |
| LED Type | SMD1010 outdoor | SMD1010 outdoor | SMD1415 outdoor |
| Brightness (cd/㎡) | ≥4500cd/㎡ | ≥4500cd/㎡ | ≥4500cd/㎡ |
| Scan Method | 1/40S | 1/32S | 1/16S |
| Cabinet Size (mm) | 500*500*75mm | 500*500*75mm | 500*500*75mm |
| Module Size (mm) | 250*250*17mm | 250*250*17mm | 250*250*17mm |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | ≤7.5kg | ≤7.5kg | ≤7.5kg |
| Cabinet Maintenance | Full Front/Rear Service | Full Front/Rear Service | Full Front/Rear Service |
| Max Power Consumption/㎡ | 700W | 700W | 700W |
| Average Power Consumption/㎡ | 180W | 180W | 180W |
| Refresh Rate | 7680HZ | 7680HZ | 7680HZ |
| Grey Scale | 14BIT | 14BIT | 16BIT |
| Viewing Angle | H140°, V140° | ||
| Input Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | ﹣40℃－﹢70℃ | ||
| Working Humidity | 10%－90%RH | ||
| Protection Level | IP65 | ||
| Color Temperature | 3000-9500K | ||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||
