HD GOB 1000 * 250mm lightweight wall mounted quick installation indoor P1.953mm LED display screen
HD GOB 1000 * 250mm lightweight wall mounted quick installation indoor P1.953mm LED display screen
38mm Ultra-thin Silver Blade LED Display Indoor Installation
Dimension: 250*1000*38mm, 750*1000*38mm,
Pixel Pitch Indoor: 1.5mm, 1.9mm, 2.6mm,

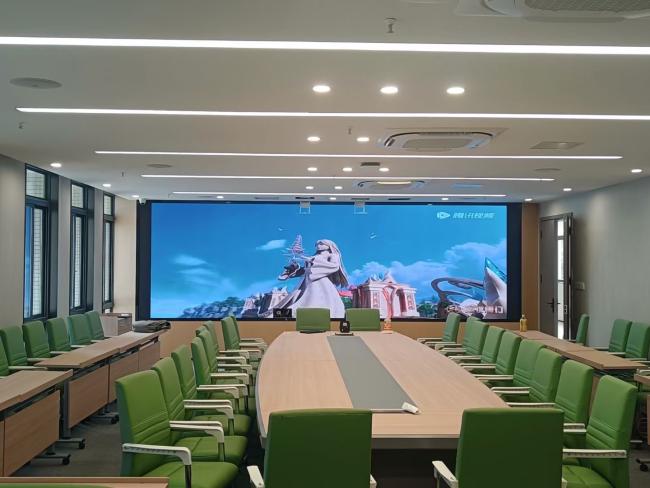

Applications: Conference Room, Control Center, Shopping Mall, Schools, etc.
Product Features
Die-casting CNC-finished panel frame, rugged and accurate.
Wall mounted design,suits for fast installation
The two specifications of 1000 * 250mm and 750 * 250mm can be mixed and installed.
Easily splicing 2k,4k,8k screen,better visual enjoyment.
Features 45° angled bezels for a seamless column effect.Adapt to any space. Create without limits.
Front access magnetic module,can be easy-to-use and fast maintenance.
Modular design panel,stacking installation,Suspension installation.
Parameters:
| Parameter | P1.5 | P1.9 | P2.6 |
| Pixel Pitch (mm) | 1.5625 | 1.953 | 2.604 |
| Pixel Density (/m²) | 409,600 | 262,144 | 147,456 |
| LED Model | SMD1010 | SMD1515 | SMD1515 |
| White Balance Brightness (cd/m²) | 1000 | 1000 | 1000 |
| Scanning | 1/40 | 1/32 | 1/24 |
| Cabinet Size (mm) | 1000×250×38 / 750×250×38 | ||
| Module Size (mm) | 250×250×3 | ||
| Cabinet Material | Die-cast Aluminum | ||
| Cabinet Weight | 8.5kg / 10.5kg | ||
| Protection Level | IP31 | ||
| Maintenance Method | Front Maintenance | ||
| Max Power Consumption (/m²) | 600W | ||
| Avg. Power Consumption (/m²) | 150W | ||
| Refresh Rate | 3840-7680Hz | ||
| Grayscale Level | 13-16bit | ||
| Viewing Angle | H140°, V140° | ||
| Input Voltage | AC100~240V (50-60Hz) | ||
| Operating Temperature | -20℃~+60℃ | ||
