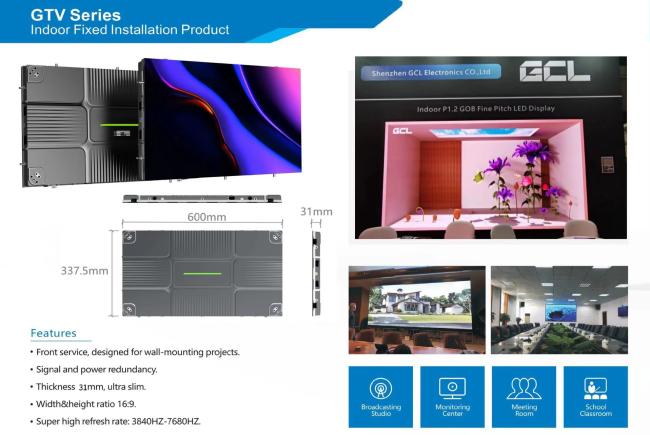

3840Hz Small Pixel 0.9mm 1.25mm 1.56mm 1.86mm GTV Indoor Fixed Products LED Video Wall Fine Pitch 4K Indoor

3840Hz Small Pixel 0.9mm 1.25mm 1.56mm 1.86mm GTV Indoor Fixed Products  LED Video Wall Fine Pitch 4K Indoor

The low-pass system has a lightweight and thin design for both the box and the body, and can be used as a multi spacing module for this box (P0.9375mm to 1.875mm)

16: 9-inch, 27 inch screen, easy to achieve 2K/4K ultra clear picture splicing
Large domain, richer color hierarchy, multifunctional body

High precision CNC die cast aluminum box with ultra-thin frame, perfect seam fitting and splicing
Realize pre - and post installation and maintenance, adapt to complex site installation

Wire connection
The module and box are assembled using a single wire, making installation more convenient and saving on wire and labor costs
Ultra clear 2K/4K27 inch machine, easy to achieve 16:9 screen display, 2K/4K ultra clear picture splicing

Front end installation
Connect the box to the frame through M50x50 screws from the front of the box and clamp the installation bracke

Rear installation
Connect the box and frame from the rear using M5x50 screws and clamp the mounting bracket
