600*337.5mm P0.9\P1.25 Ultra HD 2K/4K Clarity in a HD LED Display
Focus on Clarity & Resolution: 600*337.5mm Ultra HD 2K/4K Clarity in a HD LED Display
Q1: What is the GTV-IV Series?
A: The GTV-IV is a leading Narrow Pixel Pitch LED display series. It's designed to give you an enhanced visual experience with Ultra HD 2K/4K clarity.
Q2: What are its best features?
A: It’s all about convenience and reliability:
- Easy Setup: It's Ultrathin (as thin as 32mm) and lightweight, so you don't need a heavy steel structure for wall-mounted installation.
- Simple Maintenance: It features Front maintenance and Magnetic adsorption for easy access.
- Reliable Performance: It has Dual backups for power and signal (Worry-free backup) to prevent system failure.
- Great Picture: It uses the $16:9$ Golden ratio for seamless display stitching.
Q3: What models are available?
A: We offer four models based on pixel pitch: P0.9, P1.2, P1.5, and P1.875.
Q4: Is the picture quality really that good?
A: Yes! It has a very fast Refresh Rate of 3840 Hz and a wide Viewing Angle of H160, V160. Plus, it maintains a bright 600 nits across all models.

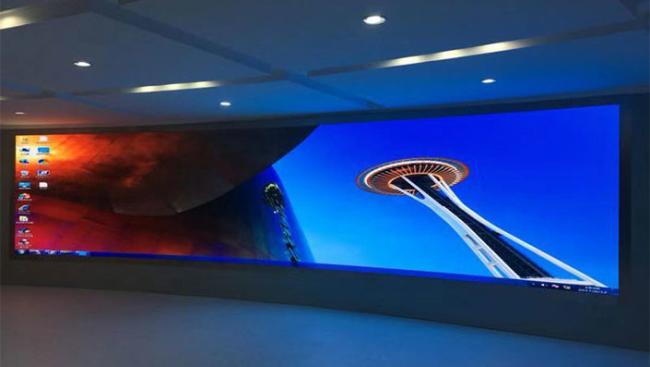

Q5: Where is this display typically used?

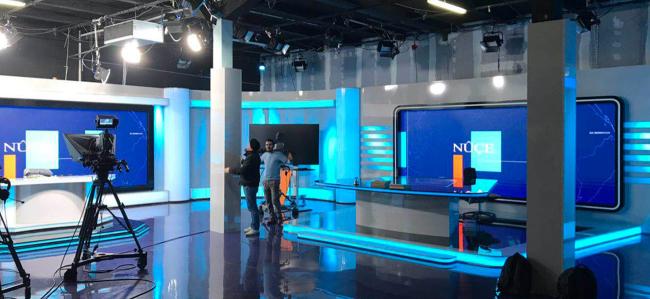

A: It's perfect for high-end applications like Command centres, Conference Halls, Commercial Display, Digital Exhibition, and Television studios.
Parameters of GTV Series
| Product | P0.9 | P1.875 |
| Pitch | 0.9mm | 1.875mm |
| Density(pixels/m²) | 1137777 | 284444 |
| LED Type | Mini09 | SMD1515 |
| Brightness | 600nits | 600nits |
| Scan Method | 1/36 | 1/45 |
| Panel Material | Die-casting Alumium | |
| Panel Weight | 4kg | 4kg |
| Protection Level | IP31 | IP31 |
| Maintenance | Front service | |
| Max Power Consumption |
450W/㎡ |
450W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ |
| Refresh Rate | 3840Hz | |
| Grey Scale | 13-16Bit | |
| Viewing Angle | H160°,V160° | |
| Voltage | AC100~240V(50-60Hz) | |
