Outdoor High Transmittance IP65 Protected Gmesh-T Grid Screen with Front Maintenance Design for Building Facades
Price:
399
MOQ:
5
Delivery Time:
7-30days
Brand:
GCL
Product Description
Outdoor High-Transmittance Waterproof Grille Screen DIP346

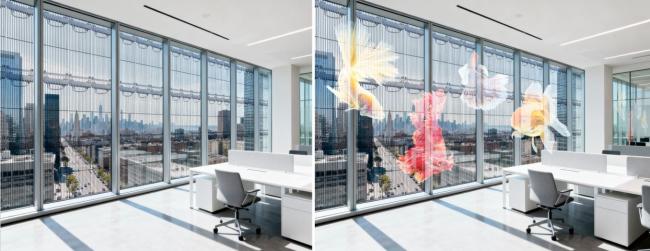

The Gmesh-T grid screen features a strip-like, hollowed-out translucent design that maintains ventilation and natural lighting. Ideal for building facades and landmark architecture, this product is specifically designed for creating super-large outdoor displays and dynamic visual landscapes.
Product Overview
The Gmesh-T series grid screens are engineered for superior performance in demanding outdoor environments. With applications ranging from building curtain walls and rooftop installations to outdoor advertising displays, these screens combine functionality with aesthetic appeal.
Available Sizes
Standard cabinet sizes: 500×500mm, 500×625mm, 500×1000mm, 500×1250mm. Custom sizes available upon request.
Pixel Pitch Options
DIP configurations: P15.625, P31.25-15.625, P31.25-25, P31.25
Key Features
- Ultra-thin cabinet design with maximum thickness of only 92.7mm
- Lightweight construction: 11.5-14 kg per square meter
- DIP 346 LED beads available in horizontal and vertical configurations
- Optical transmittance: 35% to 75%
- Wide operating temperature range: -40℃ to +70℃
- Front-maintenance design for easy access and service
Technical Specifications
| Parameter | P16-A | P16-B | P25 | P31.25 |
|---|---|---|---|---|
| Pitch (mm) | 15.625 | 31.25-15.625 | 31.25-25 | 31.25 |
| Density (pixels/m²) | 4096 | 2048 | 1280 | 1024 |
| LED Type | DIP346 | DIP346 | DIP346 | DIP346 |
| Brightness (nits) | 10000 | 10000 | 10000 | 8000 |
| Scan Type | Static | Static | Static | Static |
| Cabinet Weight (kg/m²) | ≤14 | ≤12.7 | ≤12 | ≤11.5 |
| Max Power Consumption (W/m²) | 350 | 350 | 350 | 350 |
| Average Power Consumption (W/m²) | 120 | 120 | 120 | 120 |
Protection Level: IP65
Maintenance: Front/Rear Access
Refresh Rate: ≥3840Hz
Grey Scale: 16Bit
Viewing Angle: H100°, V50°
Input Voltage: AC100-240V (50-63Hz)
Operating Temperature: -40℃ to +70℃
Storage Humidity: 10%-90% RH
Color Temperature: 6500-9500K
Certifications: CE/ROHS/CCC/FCC
