Rental Display Screens In Heart And Christmas Tree Shapes For Bar Stages, With Pixel Pitches Of P1.953mm And P2.6mm Respectively
Price:
Price to be discussed
MOQ:
Min. order: 20
Delivery Time:
Negotiable
Brand:
GCL
Product Description
Rental Display Screens In Heart And Christmas Tree Shapes For Bar Stages, With Pixel Pitches Of P1.953mm And P2.6mm Respectively
Gprime is a specialized rental LED display product. We can provide project renderings and customize modules according to customer requirements.

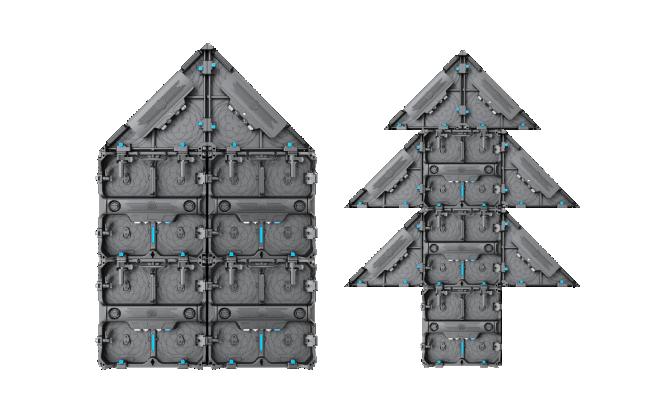

It adopts standard 500×500mm cabinets, combined with triangular and curved cabinets to form heart-shaped, circular, fan-shaped and Christmas tree-shaped displays. The dimensions of each shape can be customized to meet your project requirements.
It is equipped with GOB modules with anti-collision corners around the perimeter, which protect the front lamp beads from collision and damage during transportation.
It features a true refresh rate of 7680Hz, delivering outstanding dynamic display performance.
With a lightweight single-cabinet design of only 7kg, and a built-in handle at the center of the rear panel, it allows one-handed operation for large-screen assembly, ensuring convenience and efficiency.
It can be matched with right-angle locks and curved locks as required, facilitating the construction of curved background screens with a curvature ranging from -7.5° to +10°.
It also supports full front maintenance; simply rotate the power box knob to pull out the power supply from the front for replacement.
Compatible with various structural components, it can be installed in different scenarios, including floor-mounted installation, hanging installation and bracket installation.

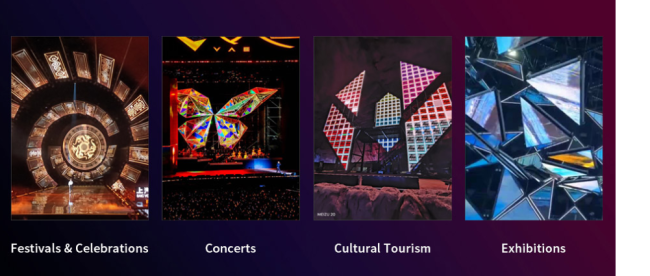

Combining square standard cabinets with special-shaped modules to create diverse configurations, it forms stunning display screens ideal for hotels, bars and concerts.
| Name | Gprime-1.5 | Gprime-1.9 | Gprime-2.6 |
| Pixel Pitch (mm) | P1.5625 | P1.953 | P2.604 |
| Density pixels/㎡ | 409600 | 262144 | 147456 |
| LED Type | SMD1010 outdoor | SMD1010 outdoor | SMD1415 outdoor |
| Brightness (cd/㎡) | ≥4500cd/㎡ | ≥4500cd/㎡ | ≥4500cd/㎡ |
| Scan Method | 1/40S | 1/32S | 1/16S |
| Cabinet Size (mm) | 500*500*75mm | 500*500*75mm | 500*500*75mm |
| Module Size (mm) | 250*250*17mm | 250*250*17mm | 250*250*17mm |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | ≤7.5kg | ≤7.5kg | ≤7.5kg |
| Cabinet Maintenance | Full Front/Rear Service | Full Front/Rear Service | Full Front/Rear Service |
| Max Power Consumption/㎡ | 700W | 700W | 700W |
| Average Power Consumption/㎡ | 180W | 180W | 180W |
| Refresh Rate | 7680HZ | 7680HZ | 7680HZ |
| Grey Scale | 14BIT | 14BIT | 16BIT |
| Viewing Angle | H140°, V140° | ||
| Input Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | ﹣40℃－﹢70℃ | ||
| Working Humidity | 10%－90%RH | ||
| Protection Level | IP65 | ||
| Color Temperature | 3000-9500K | ||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||
