Outdoor Fixed Video Wanll 8000-10000ntis Billboard Advertising 960*960mm IP65 waterproof
Price:
510
MOQ:
10
Delivery Time:
15-30
Brand:
GCL
Product Description
Product Features:
Outdoor fixed-installation high-brightness advertising billboard, panel size 960×960mm

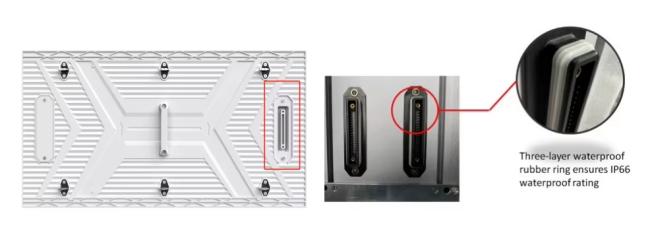

Both LED modules and cabinets feature IP65 Outdoor Fixed Products 8000-10000ntis Billboard Advertising 960*960mm IP65 waterproof rating on front and rear sides.
Single 960×960mm cabinet weighs only 29.5kg.
Adopts dual-voltage energy-saving technology for higher power efficiency.
Single 960×960mm cabinet weighs only 29.5kg.
Adopts dual-voltage energy-saving technology for higher power efficiency.
Equipped with small-corner modules, which form seamless curved displays when integrated with standard cabinets; customizable to project specifications. Widely used in outdoor naked-eye 3D commercial advertising solutions.
Utilizes DIP through-hole LEDs with brightness up to 10,000 nits:
This ultra-high brightness display delivers stunning image quality, presenting perfect visual effects, exceptional color rendition and fine details even in direct sunlight.
This ultra-high brightness display delivers stunning image quality, presenting perfect visual effects, exceptional color rendition and fine details even in direct sunlight.

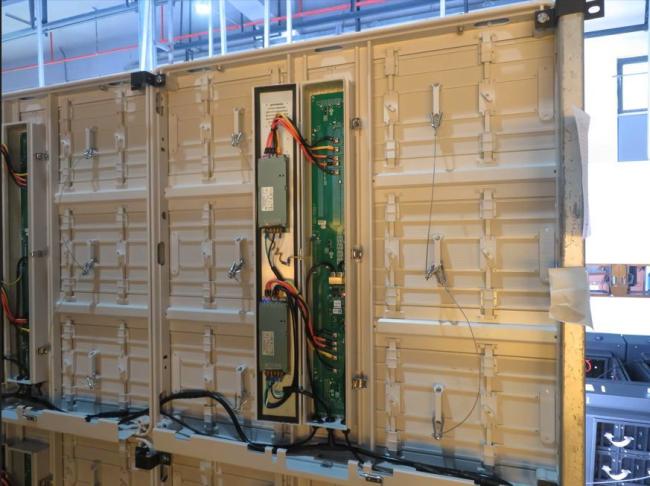

Modular design for easy maintenance:
Modular configuration of independent central control and power supply adapts to diverse installation environments.
Modules support front and rear disassembly and maintenance, enabling convenient bidirectional installation and servicing.
Modular configuration of independent central control and power supply adapts to diverse installation environments.
Modules support front and rear disassembly and maintenance, enabling convenient bidirectional installation and servicing.
| Product | P4 | P5.71 | P6.67 | P8 | P10 | P10D |
| Pitch | 4mm | 5.71mm | 6.67mm | 8mm | 10mm | 10mm |
| Density(pixels/m²) | 62500 | 30625 | 22500 | 15625 | 10000 | 10000 |
| LED Type | SMD 1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | DIP346 |
| Brightness | 6000nits | 6500nits | 6500nits | 6500nits | 6500nits | 10000nits |
| Scan Method | 1/7? | 1/7 | 1/6 | 1/4 | 1/2 | 1/4 |
| Panel Size | 960×960mm | 960×960mm | ||||
| Module Size | 480×320mm | 480×320mm | ||||
| Panel Material | Profile Aluminum | |||||
| Panel Weight | 30kg | 30kg | 29.5kg | 29.5kg | 29.5kg | 38.8kg |
| Protection Level | IP65 | IP65 | ||||
| Maintenance | Front&Rear Service | Front&Rear Service | ||||
| Max Power Consumption | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 650W/㎡ | 350W/㎡ |
| Average Power Consumption | 210W/㎡ | 210W/㎡ | 210W/㎡ | 210W/㎡ | 210W/㎡ | 110W/㎡ |
| Refresh Rate | 3840Hz | 3840Hz | ||||
| Grey Scale | 13-16Bit | 13-16bit | ||||
| Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H140°,V120° | H140°,V120° | H100°,V50° |
| Voltage | AC100~240V(50-60Hz) | AC96~264V(50-60Hz) | ||||
| Working Temperature | -30℃ to 60℃ | |||||
| Working Humidity | 10%-90%RH | |||||
| Color Temperature | 3000-9500K | |||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | |||||

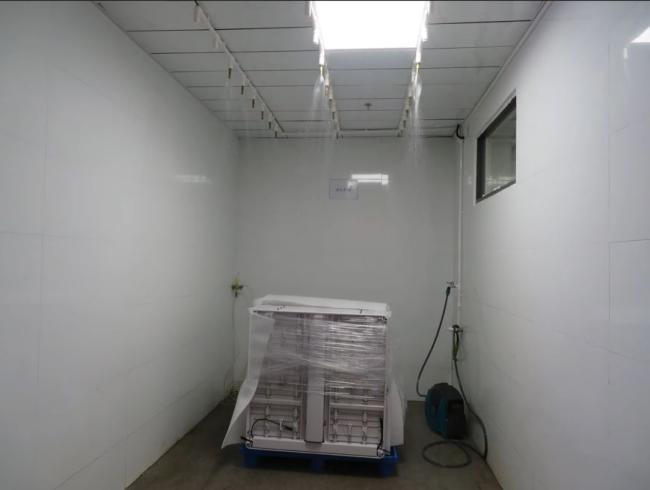

Waterproof Test:
