Outdoor High-Transmittance Waterproof Grille Advertising Display DIP346, Brightness 10,000 Nits
Price:
Negotiable
MOQ:
20
Delivery Time:
7-30days
Brand:
GCL
Product Description
Product Overview

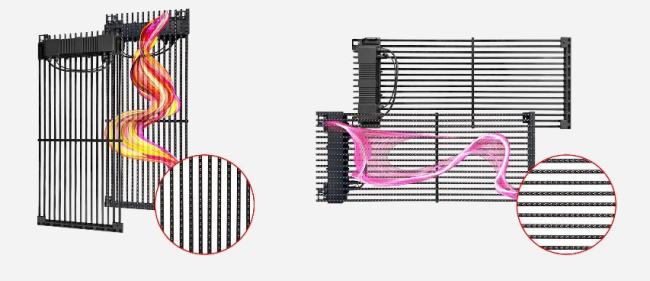

The Gmesh‑T series grille displays are optimized for high performance in harsh outdoor environments, widely applicable to building curtain walls, rooftop installations, large outdoor advertising screens and other scenarios.
Available Sizes:
Standard cabinet dimensions: 500×500mm, 500×625mm, 500×1000mm, 500×1250mm; non-standard custom sizes available upon request.
Pixel Pitch Options:
DIP LED configurations: P15.625, P31.25-15.625, P31.25-25, P31.25
Key Features:
- Ultra-slim cabinet design with a maximum thickness of only 92.7mm.
- Lightweight structure at 11.5–14kg per square meter, reducing steel structure costs for high-altitude installations.
- Optical transmittance of 35%–75%, delivering high transparency without blocking building lighting and ventilation.
- High brightness: DIP LED beads achieve up to 10,000 nits, ideal for direct-sunlight outdoor use; available in horizontal/vertical LED array layouts.
- Strong scene adaptability: curtain wall advertising, stage backdrops, stadium perimeters, cultural tourism landmarks, etc.
- Full compliance certifications: CE, RoHS, CCC, FCC, ready for export to multiple countries.
-
Product P16-A P16-B P25 P31.25 Pitch(mm) 15.625mm 31.25-15.625mm 31.25-25mm 31.25mm Density(pixels/m2) 4096 2048 1280 1024 LED Type DIP346 DIP346 DIP346 DIP346 Brightness(nits) 10000nits 10000nits 10000nits 8000nits Scan static static static static Cabinet Size(mm) 500*500/500*625/500*1000/500*1250/customizable Cabinet Material Profile Aluminum + Die-Cast Aluminum Cabinet Weight ≤14kg/㎡ ≤12.7kg/㎡ ≤12kg/㎡ ≤11.5kg/㎡ Protection Level IP65 Cabinet Maintenance Front/Rear Maintenance Max Power Consumption 350W/㎡ 350W/㎡ 350W/㎡ 350W/㎡ Average Power Consumption 120W/㎡ 120W/㎡ 120W/㎡ 120W/㎡ Refresh Rate ≥3840Hz Grey Scale 16Bit Viewing Angle H100°,V50° H100°,V50° H100°,V50° H100°,V50° Input Voltage AC100~240V(50-63Hz) Working TemperatureWorking Humidity ﹣40℃－﹢70℃ Storage Temperature/Storage Humidity 10%－90%RH color temperature 6500-9500K Certifications CE/ROHS/CCC/FCC
