Stage Concert LED Display with 7680Hz Refresh Rate and 160° Horizontal / 140° Vertical Viewing Angle in 500*500mm and 500*1000mm Panel Sizes
Price:
Negotiable
MOQ:
50
Delivery Time:
10-15work days
Brand:
GCL
Product Description
Stage Concert LED Display
Floor Truss Installation Type: Choose between left and right straight locks and curved locks with 160° Horizontal 140° Vertical viewing angle
Product Overview
The Stage Concert LED Display is a state-of-the-art visual solution designed for live performances, concerts, and large-scale events. Featuring full-color display technology, it delivers vibrant, high-definition visuals with exceptional image clarity and color accuracy.
Key Features
- Versatile panel sizes: 500mm x 500mm and 500mm x 1000mm that can be mixed during installation
- Flexible configurations for various stage setups including rectangular screens, banners, and unconventional shapes

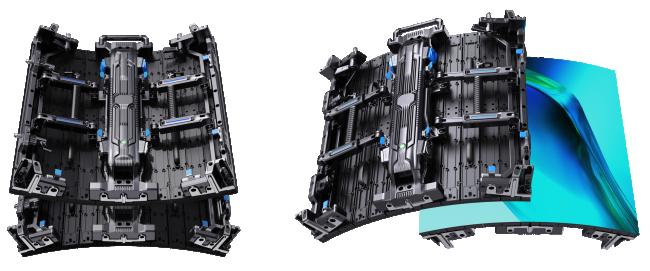

- Assembly into complex shapes: right angles, circles, and cubes for immersive visual environments

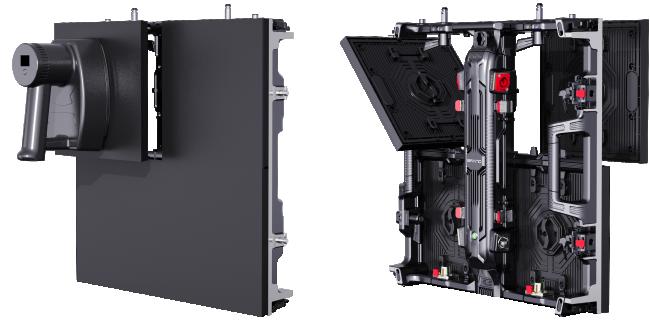

- Front maintenance access for easy module replacement without dismantling entire display
- Robust die cast cabinet construction for superior strength and heat dissipation
- Universal voltage range: AC 100~240V at 50-60Hz for worldwide compatibility
- Wide viewing angle: 160° horizontally and 140° vertically
- 16-bit color depth for smooth gradients and rich color reproduction
Product Specifications
- Product Name: Stage Concert LED Display
- Outdoor Models: P1.9, P2.6, P2.9
- Screen Type: LED GOB
- Viewing Angle: 160° Horizontal / 140° Vertical
- Contrast Ratio: 6000:1
- Cabinet Construction: Die Cast Aluminum
- Panel Sizes: 500*500mm and 500*1000mm (mixable)
Technical Parameters
| Name | P1.95 | P2.5 | P2.604 | P2.976 |
|---|---|---|---|---|
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD2121 |
| Pixel Pitch (mm) | 1.953 | 2.5 | 2.604 | 2.976 |
| Module Resolution | 128*128 | 100*100 | 96*96 | 84*84 |
| Module Size (mm) | 250*250 | |||
| Scan Method | 1/32s | 1/25s | 1/32s | 1/28s |
| Cabinet Resolution | 256*256 | 200*200 | 192*192 | 168*168 |
| Cabinet Size (mm) | 500*500*75 / 500*1000*75 | |||
| Cabinet Weight | 7.5kg | |||
| Pixel Density (pixels/㎡) | 262144 | 160000 | 147456 | 112896 |
| Protection Level | IP34 | |||
| Brightness (nits) | 900 | 900 | 900 | 1000 |
| Color Temperature | 2000-10000K Adjustable | |||
| Viewing Angle | H160°, V140° | |||
| Light Decay Rate | <3% | |||
| Contrast Ratio | 6000:1 | |||
| Grey Scale | 16bit | |||
| Max Power Consumption/㎡ | 400W | 400W | 400W | 520W |
| Average Power Consumption/㎡ | 135W | 135W | 135W | 170W |
| Cabinet Maintenance | Front & Rear Service | |||
| Input Voltage | AC110~220V (50-60Hz) | |||
| Refresh Rate | ≥7680Hz | |||
| Frame Rate | 50Hz/60Hz | |||
| Working Temperature/Humidity | -30℃~+60℃ / 10%-95%RH | |||
| Storage Temperature/Humidity | -30℃~+85℃ / 10%-95%RH | |||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | |||
Applications
The GCL Gmars-P Stage Concert LED Display is an advanced full-color digital poster and video wall solution designed for various entertainment and professional settings.
Primary Applications
- Press Conferences: Essential for clear, sharp visuals in presentations and live broadcasts
- Regular Concerts: Delivers stunning visual effects that elevate performance atmosphere
- XR Display Scenes: Provides immersive backgrounds and interactive visuals for production quality
The modular design supports mixed installation of 500*500mm and 500*1000mm panels, allowing customization to fit specific stage dimensions and artistic requirements.
Customization Options
GCL's Gmars-P Stage Concert LED Display offers extensive customization to meet diverse event requirements.
- Full color display with 16-bit color depth
- 7680Hz high refresh rate for smooth, flicker-free images
- Lightweight design: individual weight only 7.5kg
- Flexible installation types: Floor Truss and Hanging setups
- Digital Poster and Video Wall capabilities
- Wide viewing angle: 160° Horizontal and 140° Vertical
Support and Services
Our comprehensive support ensures optimal performance and longevity of your Stage Concert LED Display.
- Technical support including installation guidance and troubleStudio
- Software setup, calibration, and firmware updates
- On-site services: system inspection, repair, and preventive maintenance
- Detailed user manuals and online resources
- Regular training sessions and webinars for technical staff
- Lifelong commitment to exceptional performance and reliability
