Outdoor LED Poster Screen with IP65 Waterproof 5500-6500nits Brightness and 3840Hz Refresh Rate for Advertising
Price:
Price to be discussed
MOQ:
5
Delivery Time:
Negotiable
Brand:
GCL
Product Description
Bus Stop, Airport Waiting Hall, Shopping Mall, Outdoor LED Energy-saving Waterproof Poster Screen P1.875mm
Product Overview
The Poster Led screen series is a high-performance outdoor grille LED display with excellent comprehensive performance, widely applied in commercial advertising and creative display scenarios. It adopts professional industrial protection technology and optimized structural design to deliver stable, high-definition and energy-efficient display effects.
Key Features
- Advanced Protection: IP65 front module protection with IP54 cabinet rating, featuring three-proof paint technology for collision resistance, shock resistance, moisture proof, waterproof, dustproof, fire resistance, anti-static and smoke resistance
- Efficient Heat Dissipation: Dual-side ventilation channel design accelerates air circulation and prevents overheating failures
- Energy Efficient: High brightness of 3500 nits with average power consumption of only 240W
- Precision Alignment: X and Y-axis four-direction adjustment technology for seamless display without visible gaps
- Custom Sizing: Flexible dimensions with standard sizes of 720*1440*101mm and 960*1440*101mm, plus personalized customization
- Superior Image Quality: Ultra-high refresh rate and true HDR dynamic restoration technology for rich picture layers and strong stereoscopic perception
Technical Specifications
| Parameter | P1.875 | P4 | P6 | P8 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.875 | 4 | 6 | 8 |
| Pixel Density (dot/㎡) | 284090 | 62500 | 27777 | 15625 |
| LED Type | 3in1 SMD1415 | SMD1921 | SMD3535 | SMD3535 |
| Scanning | 8S | 8S | 8S | 4S |
| Module Size (mm) | 256*128 | 256*128 | 256*128 | 256*128 |
| Cabinet Size (mm) | Customized | |||
| Cabinet Weight (±0.25Kg) | 40kg/㎡ | |||
| Cabinet Resolution (PX* PX) | Customized | |||
| Cabinet Material | Steel (or Aluminum) | |||
| Brightness (CD/m²) | 5500~6500 | |||
| Maximum Power Consumption (w/sqm) | 720 | |||
| Average Power Consumption (w/sqm) | 240 | |||
| Horizontal Viewing Angle (Deg) | 140° | |||
| Vertical Viewing Angle (Deg) | 140° | |||
| Grey Scale(bit) | 16 | |||
| Refresh Rate (Hz) | 1920-3840Hz | |||
| Input Voltage (V) | 110-240V | |||
| Input Frequency (Hz) | 60 | |||
| Storage Temperature (℃) | ﹣40℃－﹢80℃ | |||
| Working Temperature(℃) | ﹣20℃－﹢65℃ | |||
| Working Humidity (RH) | 95% | |||
| Cabinet Curve | Outward & Inward | |||
| Waterproof Level | IP65 | |||
| Working Environment | Outdoor | |||
| Installation Type | Fixed installation | |||

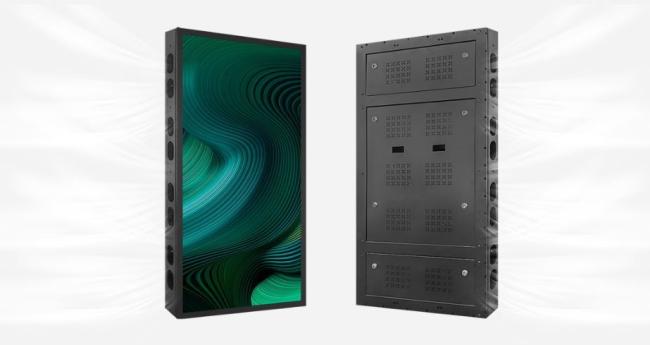

Product Images
