Thermoforming Vacuum Packaging Machine PLC Or HMI Control vacuum seal packaging machine
Price:
Negotiation
MOQ:
1set
Delivery Time:
Negotiable
Brand:
ELEMOTION
Product Description
Thermoforming Vacuum Packaging Machine Features
- Japanese FUJI PLC& HMI control with touch screen operation
- Germany Busch Vacuum Pump
- Highly durable stainless steel 304 frame
- Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume.
- Forming depth is adjustable throughaddding or reducing inserts.
- Production speed is adjustable by touch panel, easy to operate.
- Multiple shapes and sizes of packages can be made in 1 machine with different forming Die.
- Troubleshooting Via Touchscreen
- Quick product and format changes
Options
- Date coding machine
- Gas flush Systems
- Discharge conveyor
- Dosing and product loading systems
- Metal detector
- CE certification
Thermoforming Vacuum Packaging Machine Specifications
| Model | DZDLS-570 | DZDL-490 |
|---|---|---|
| Width of Upper Sealing Film | 570mm | 462mm |
| Width of Bottom Forming Film | 570mm | 488mm |
| Max Packing Size (W*L) | 532*588mm | 400*450mm |
| Max. Vacuum Degree | 200Pa | 200Pa |
| Vacuum Pum Capacity | 0.75-0.85m3/min | 1.0m3/min |
| Compressed Air Pressure | 0.6~0.8 Mpa | 0.6~0.8 Mpa |
| Electrical Requirements | 3-Phase, 380V, Approx. 20 Kw, 50Hz | 3-Phase, 380V, Approx.7.5~8.5Kw, 50Hz |
| Machine Size (L*W*H) | 8600*1165*2000mm | 6700*1080*1850mm |
| Weight of Total Machine | Approximately 2000 Kgs | Approximately 1800 Kgs |
| Production Speed (cycles/minut) | 4~7 cylces/ minut | 4~8 cylces/ minut |
The Advantages of Thermoforming Vacuum Packaging
- Hygiene from vacuum sealing.
- Convenient storage and transportation.
- Visual transparency.
- Adaptability to modified packaging dimension

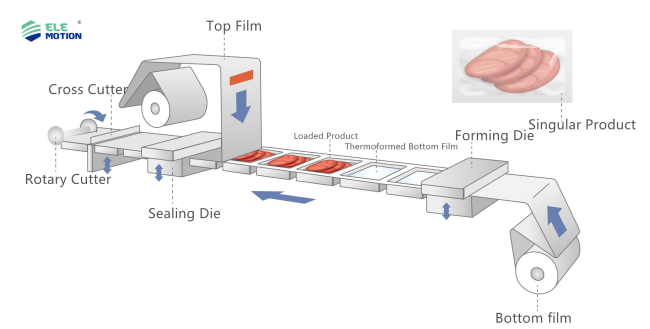

The process of thermoforming vacuum packaging machine, roll-stock type
About Vacuum Film
1. According to purpose:
- Bottom film – the film that forms inside certain molds that we fill with products;
- Top film – used for sealing with the bottom film and doesn’t form.
2. According to thickness:
- Soft film – from 20 to 240 microns;
- Rigid film – from 240 microns onwards.
3. According to composition:
- PA/PE – combination of polyamid and polyethylen;
- PE/PA/EVOH/PA/PE – combination of polyethylen, polyamid and ethylvinyl alcohol;
- PP/PA/EVOH/PA/PP – combination of polypropylen, polyamid and ethylvinyl alcohol.
4. According to layers:
- 3-layer, 5-layer, 7-layer, 11-layer, 14-layer, etc.
5. According to barrier properties:
- Full barrier film;
- Semi-barrer film.
