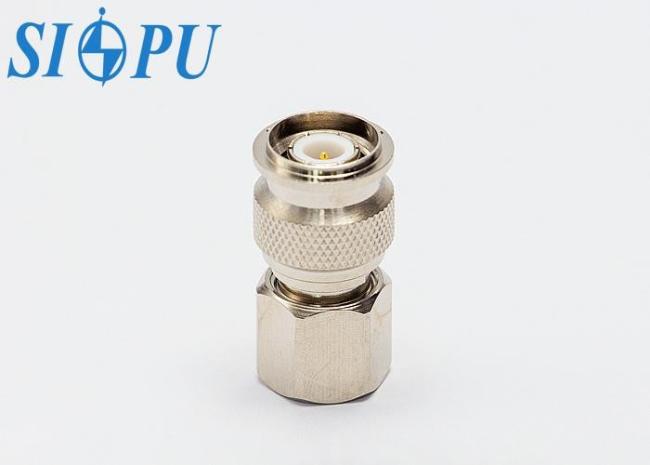

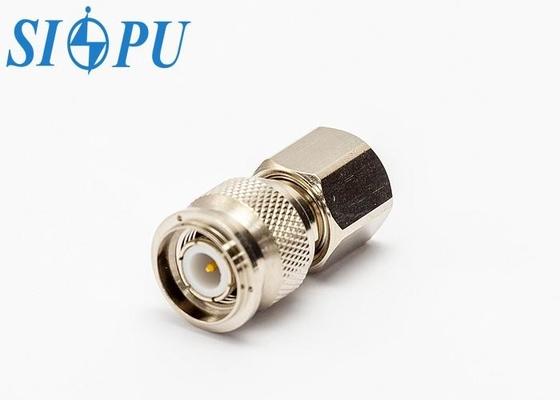

TNC Male RF Coaxial Connector – Straight Type, for RG142/U Cable
TNC Male RF Coaxial Connector – Straight Type, for RG142/U Cable
Product Overview
The TNC series is a threaded RF coaxial connector designed for small to medium-power applications. Developed in compliance with MIL-C-39012 and IEC 60169-17 standards, it offers excellent electrical performance, wide frequency bandwidth, and a highly reliable connection. TNC connectors are interchangeable with similar international products, ensuring broad compatibility.
Applications:
Suitable for mobile communication equipment, antennas, outdoor installations, and general RF applications requiring robust, threaded connections.
Product Features:
Straight male connector design
Compatible with RG142/U coaxial cable and other cables of similar specifications
Threaded coupling mechanism with microbore screw sleeve for secure fit
Frequency range up to 11 GHz
Stable electrical performance and high connection reliability
Ideal for vibration-prone or outdoor environments
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65～+165℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-11GHz | |
|
Dielectric withstanding voltage
|
1500V |
VSWR |
≤1.3 | |
|
Insulation resistance
|
≥5000MΩ |
Insertion loss |
≤0.06√F(GHz)dB |
|
|
Contact resistance |
Center conductor |
≤2.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤0.2mΩ |
Durability |
500Times | |
Materials and surface treatment
|
Center conductor
|
Brass, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, nickel plating |
Sealing ring |
Silicon rubber |
