Product Overview
RF coaxial adapters are essential for ensuring seamless signal transfer between different connector types or within the same series. They serve as a reliable bridge, enabling accurate and efficient interconnection.
Application Scope:
Widely used in RF testing environments, instrumentation, and cable assemblies—especially for system conversion and connector compatibility in testing setups.
Product Features:
Interface: SMA Female to MCX Female
Enables conversion between SMA male and MCX male connectors
Compact size and lightweight design
High reliability and consistent signal performance
Gold-plated contacts for superior conductivity and corrosion resistance
Ideal for precision test cables and RF instrumentation

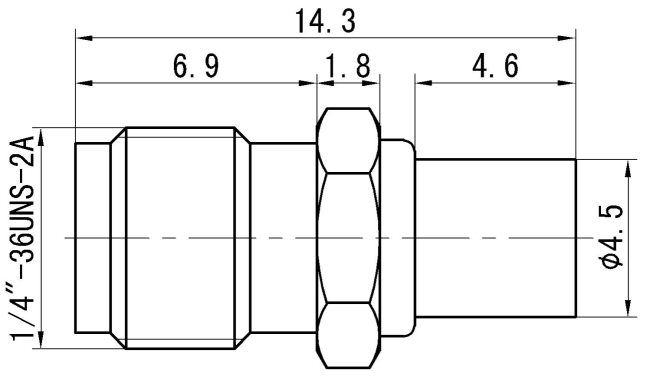

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-6GHz | |
|
Dielectric withstanding voltage
|
750V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
|
Contact resistance
|
Center conductor | ≤5.0mΩ | Mechanical property | |
| Outer conductor | ≤2.5mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze,gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass,gold plating | / | / |
