BNC Female RF Coaxial Connector – Flange Mount, for RG142/U Cable
BNC Female RF Coaxial Connector – Flange Mount, for RG142/U Cable
Product Overview
The BNC series is a bayonet-style RF coaxial connector developed and manufactured in accordance with MIL-C-39012/16–24 standards. It offers fast connection, reliable electrical contact, and full interchangeability with similar international products. Its quick-lock design makes it ideal for applications requiring frequent mating and unmating.
Applications:
Commonly used in radio equipment, electronic instruments, and the transmission of analog or digital video signals.
Product Features:

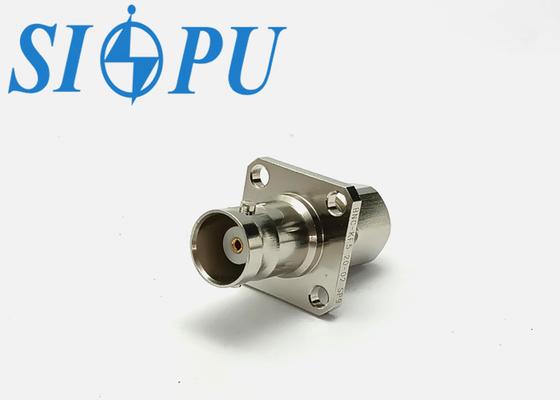

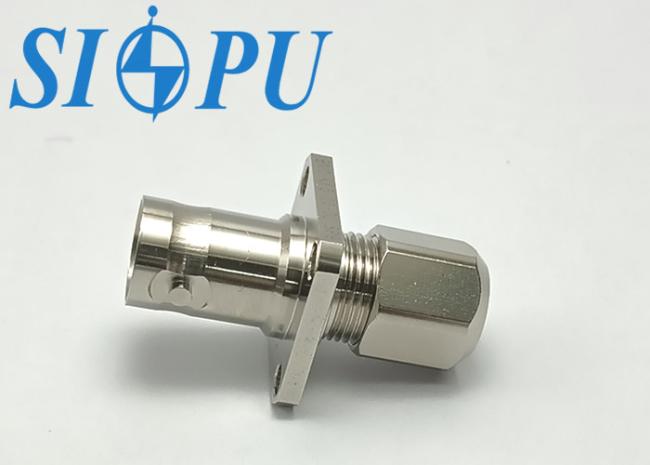

Four-hole flange-mounted female connector
Compatible with RG142/U RF coaxial cable
Bayonet coupling for quick and secure connections
Excellent vibration resistance
Stable and reliable electrical performance
Suitable for panel-mounted RF interfaces in demanding environments
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -55～+165℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-4GHz | |
|
Dielectric withstanding voltage
|
1500V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|

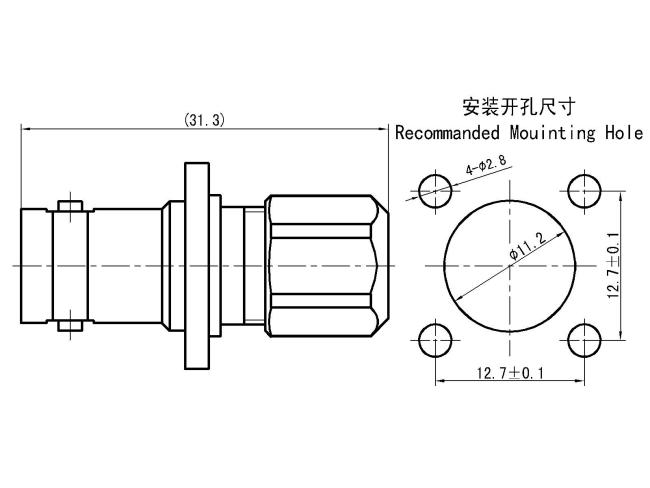

| Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
| Outer conductor | ≤0.2mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium Bronze,gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass,nickel plating | / | / |
