N Type Right Angle RF Coaxial Connector for RG142B/U Cable
N Type Right Angle RF Coaxial Connector for RG142B/U Cable
Product Overview
The N series is a threaded medium-power RF connector developed in compliance with MIL-C-39012 and IEC60169-16 standards. As one of the most widely used coaxial connectors in sensing and wireless communication systems, it features strong vibration resistance, high reliability, and excellent mechanical and electrical performance. The connector is also fully compatible and interchangeable with similar international products.
Applications
Widely used in communication systems, military equipment, radio devices, and ground transmission systems.
Key Features
Right-angle (90°) structure for compact installations
Compatible with RG142B/U coaxial cables
Strong resistance to shock and vibration
Wide frequency bandwidth and stable performance
High mechanical reliability and easy assembly

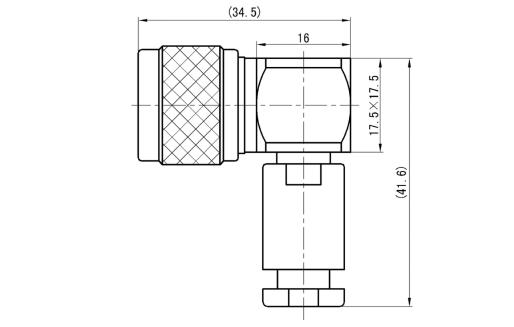

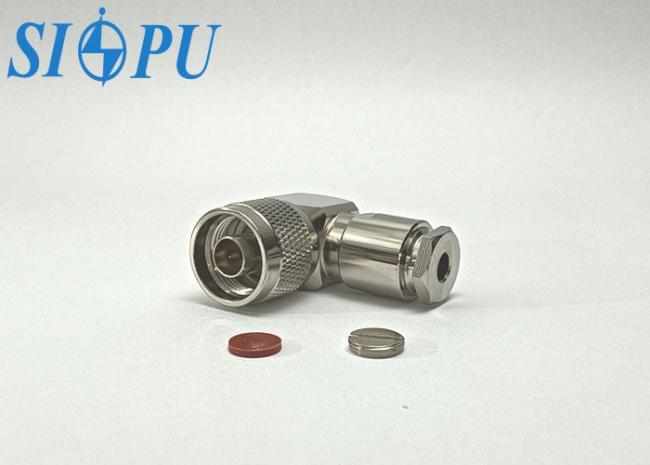

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range
|
-65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range
|
DC-11GHz | |
|
Dielectric withstanding voltage
|
1500V |
VSWR
|
≤1.5 | |
|
Insulation resistance
|
≥5000MΩ |
Insertion loss
|
≤0.1√F(GHz)dB | |
|
Contact resistance
|
Center conductor
|
≤1.5mΩ |
Mechanical property
|
|
|
Outer conductor
|
≤0.2mΩ |
Durability
|
500 times | |
Materials and Surface Treatment
|
Center conductor
|
Brass, silver plating
|
Insulating medium
|
PTFE
|
|
Outer conductor
|
Brass, nickel plating plating
|
Sealing ring
|
Silicon rubber
|

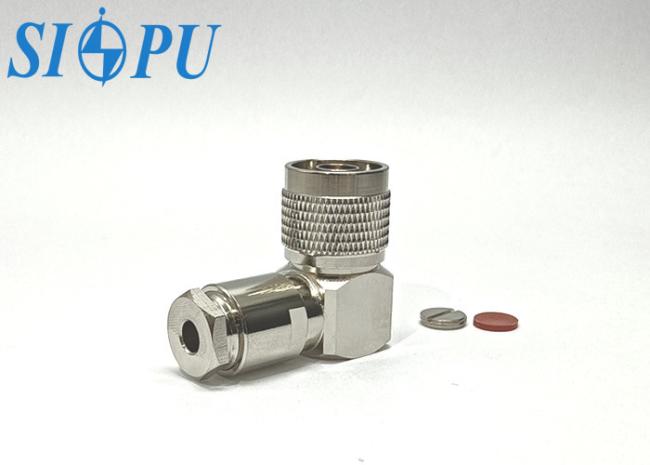

Product Image Gallery
