SMA Male RF Coaxial Connector for CXN3506 Cable, 18GHz
SMA Male RF Coaxial Connector for CXN3506 Cable | High-Frequency, Low-Loss
Product Overview
The SMA series is a widely used RF coaxial connector featuring a compact threaded design. Known for its small size, broad frequency bandwidth, and excellent electrical performance, it's ideal for RF circuit connections between cables and microstrip lines in microwave equipment and digital communication systems.
Applications:
Networking systems
Wireless communication
Telecommunications
Product Features:
Designed for use with CXN3506 RF coaxial cable
Compact and lightweight for space-constrained environments
Delivers superior electrical performance
Easy to solder and assemble

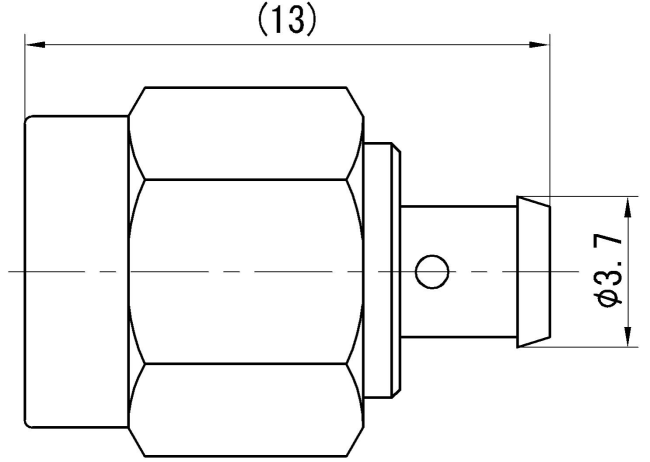

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-18GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.15+0.02F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.05√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500 times | |
Materials and Surface Treatment
|
Center conductor
|
Brass, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, gold plating/ Stainless steel, passivating |
Sealing ring | Silicon rubber |
