SMA Male to SMA Male RF Coaxial Adapter – Brass Body, 18GHz
SMA Male to SMA Male RF Coaxial Adapter – Brass Body
Product Overview
RF coaxial adapters play a key role in ensuring proper signal transmission by bridging connections within the same or across different connector series. This SMA male-to-male adapter enables reliable connection between two SMA female interfaces. Manufactured in compliance with MIL-C-39012 and relevant IEC standards, it ensures compatibility, stable performance, and long service life.
Applications
Commonly used in system conversion and connection, especially in test instruments, RF measurement setups, and test cables.
Key Features
SMA male interface on both ends
Compatible with SMA female connectors
Brass body for durability, corrosion resistance, and cost efficiency
Compact size, high reliability, and excellent electrical performance
Long service life, ideal for frequent testing and modular setups

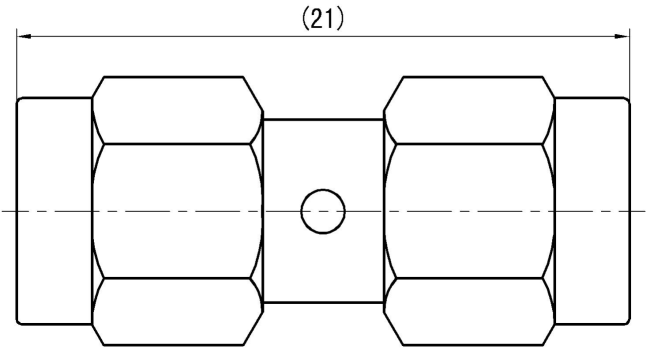

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-18GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.05+0.012F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.06√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ |
Durability |
500 times | |
Materials and Surface Treatment
|
Center conductor
|
Brass, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, gold plating | Sealing ring | Silicon rubber |

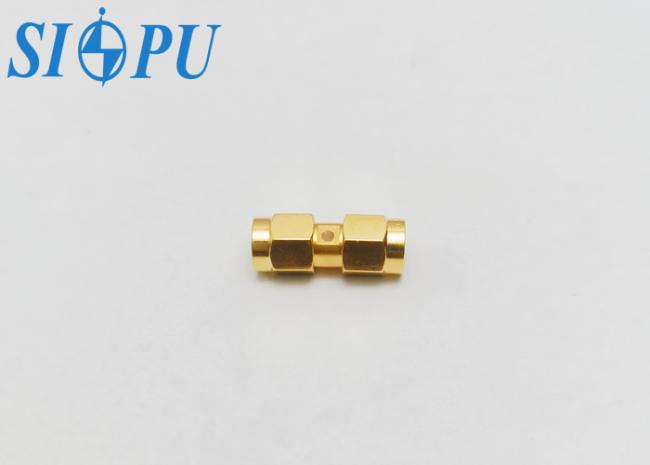

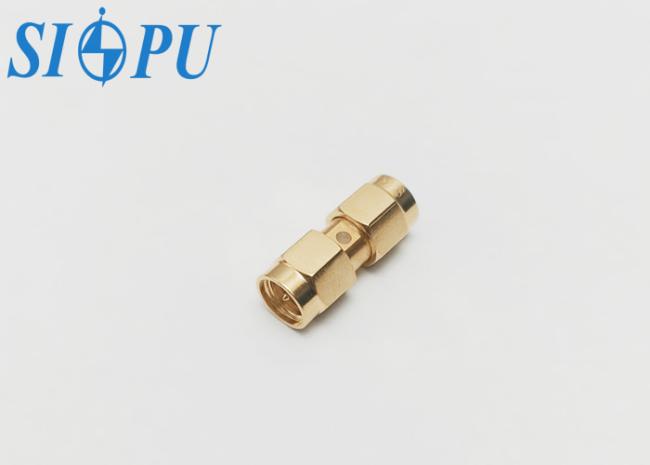

Product Image Gallery
