SMA Female Flange-Mount RF Connector | Slotted Tail, Coaxial Jack, 18GHz
SMA Female Flange-Mount RF Connector | Slotted Tail, Coaxial Jack
Product Overview
The SMA series connector is a widely used coaxial RF connector featuring a compact, threaded coupling design. It is ideal for connecting cables or microstrip lines in the RF circuits of microwave devices and digital communication systems.
Applications:
Telecommunications
Network infrastructure
Wireless communication systems
RF test and measurement
Product Features:
4-hole flange mount for secure and vibration-resistant panel installation
Slotted tail jack (0.2 mm wide × 2.5 mm deep) for enhanced solderability
Screw-type connection for stability and long-term durability
Supports wide frequency bandwidth and offers excellent electrical performance
Built for high reliability and long service life

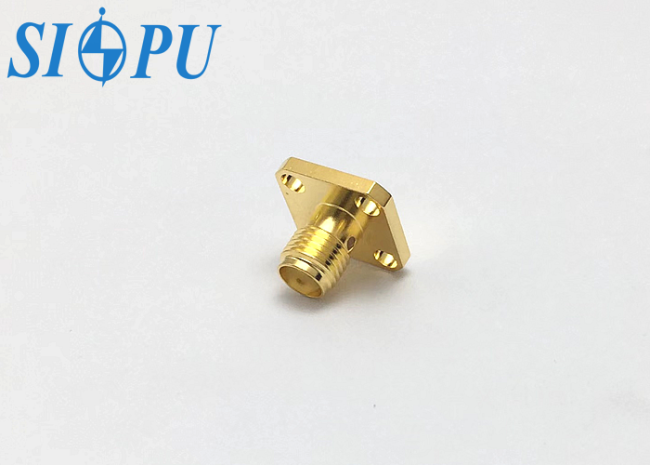

Product Appearance

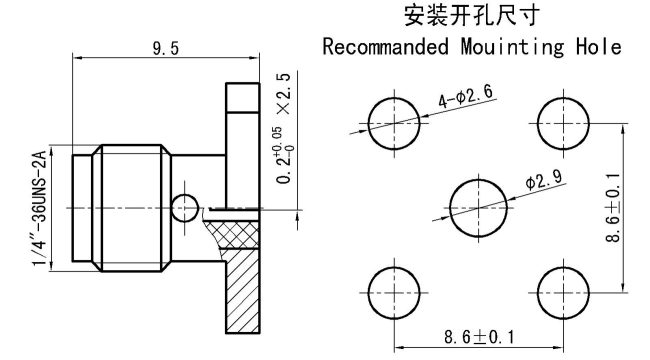

Important Technical Parameters
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-18GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.05+0.012F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.05√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability |
500times |
|
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, gold plating | / | / |

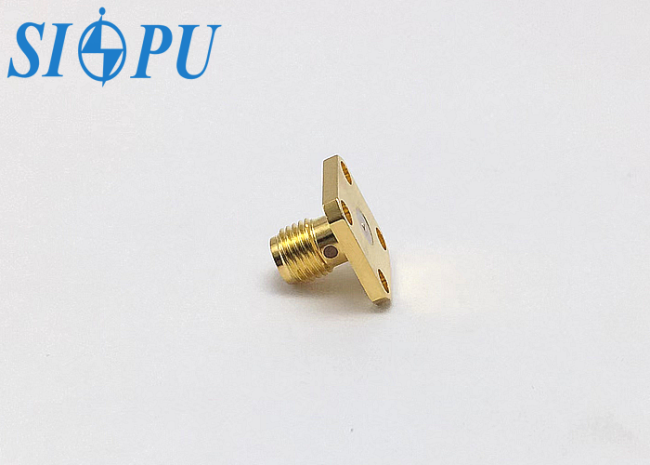

Product Image Gallery
