Angled SMA Female RF Coaxial Connector – Compatible with CXN3506 Cable
Angled SMA Female RF Coaxial Connector – Compatible with CXN3506 Cable
Product Overview
The SMA series connector is a compact RF coaxial connector featuring a threaded coupling mechanism. It offers wide frequency bandwidth, excellent mechanical durability, and superior electrical performance—ideal for RF circuit connections in microwave equipment and digital communication systems.
Applications
Wireless communication · Networking · Telecommunications · Radar systems · Microwave devices
Product Features
Right-angle (bent) SMA female design
Compatible with CXN3506 RF coaxial cable
High reliability and strong global interchangeability
Excellent electrical characteristics (low loss, stable phase)
Easy to solder and install

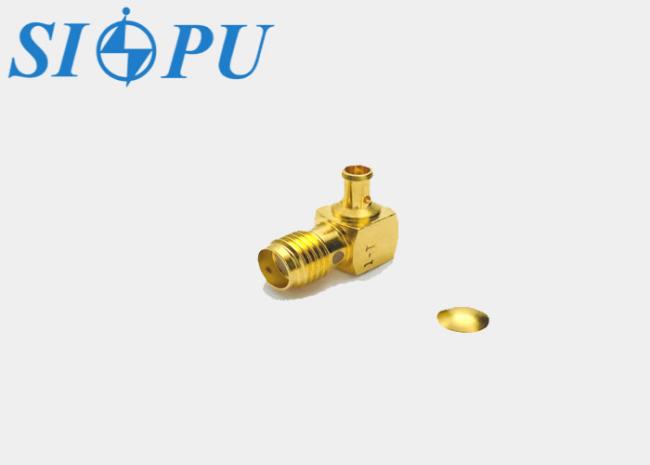

Product Appearance

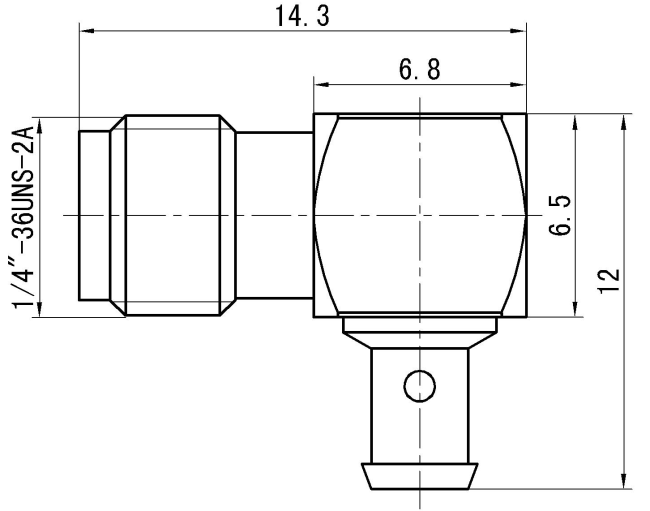

Important Technical Parameters
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-12.4GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.06+0.015F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.08√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating | Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating | / | / |
