SMP Male to SMP Male RF Coaxial Adapter – Limited Detent, Thread-In Mount
SMP Male to SMP Male RF Coaxial Adapter – Limited Detent, Thread-In Mount
Product Overview
RF coaxial adapters in various specifications ensure seamless signal transmission between connectors of the same or different series. They serve as critical bridging components in RF systems.
Applications:
Commonly used for interface conversion and connectivity in test systems, including test instruments and RF test cables.
Product Features:
Dual-limited detent interfaces
Mates with SMP female connectors
Compact size
High-frequency capability
Excellent electrical performance

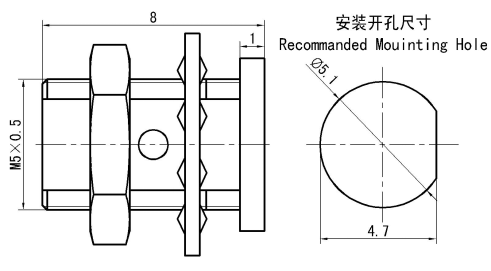

Product Structure Diagram
Important Technical Parameters
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-40GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.1+0.01F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.07√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤6.0mΩ | Mechanical property | |
|
Outer conductor
|
≤2.0mΩ | Durability | 500times | |
|
Limited detent
|
(max) Engagement force |
45N |
(min) Separation force |
9N |
Materials and Surface Treatment
|
Center conductor
|
Bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Stainless steel, passivating | / | / |

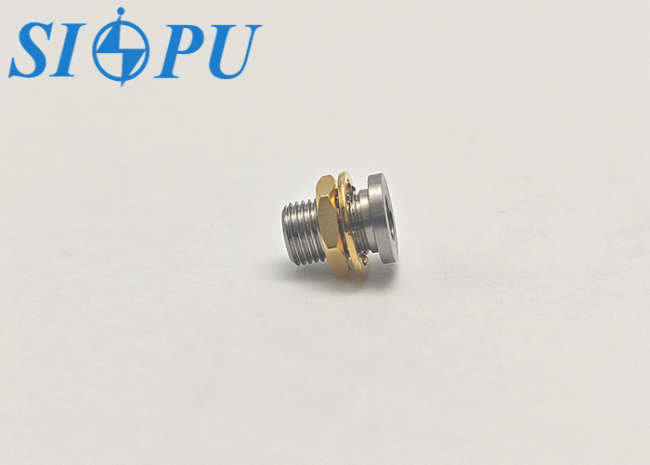

Product Image Gallery
