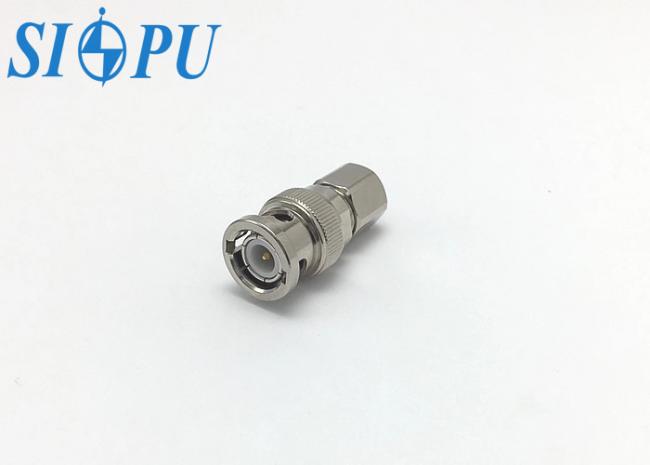

BNC Male RF Coaxial Connector – Compatible with RG316/U Cable
BNC Male RF Coaxial Connector – Compatible with RG316/U Cable
Product Overview
The BNC series is a bayonet-style, low-power RF coaxial connector designed for quick and secure connection and disconnection. Its user-friendly coupling mechanism makes it ideal for applications requiring frequent mating. BNC connectors are fully interchangeable with similar products worldwide, offering broad compatibility across systems.
Applications:
Commonly used in electronic instruments, radio equipment, and for the transmission of analog or digital video signals.
Product Features:
Compatible with RG316/U coaxial cable
Bayonet coupling for fast, secure connections
Reliable electrical contact with low signal loss
Good vibration resistance
Ideal for compact and mobile RF applications
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -55～+165℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-4GHz | |
|
Dielectric withstanding voltage
|
1500V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
| Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
| Outer conductor | ≤0.2mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Brass,gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass,nickel plating | / | / |
