SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable
SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable
Product Overview
The SMA male RF coaxial connector is one of the most widely used RF interfaces, known for its compact size, wide frequency bandwidth, and excellent mechanical and electrical performance. The 90° right-angle design is ideal for space-constrained applications, particularly in microwave systems and RF circuits for digital communication devices.
Applications
Wireless communication, instrumentation, networking, telecommunications, and microwave systems.
Key Features
Right-angle (90°) bent structure for space-efficient cable routing
Threaded back cover for secure and reliable connection
Compatible with RG316/U and 2# semi-flexible/semi-rigid coaxial cables
Strong interchangeability with standard SMA interfaces
High reliability and excellent electrical performance
Easy to solder and install

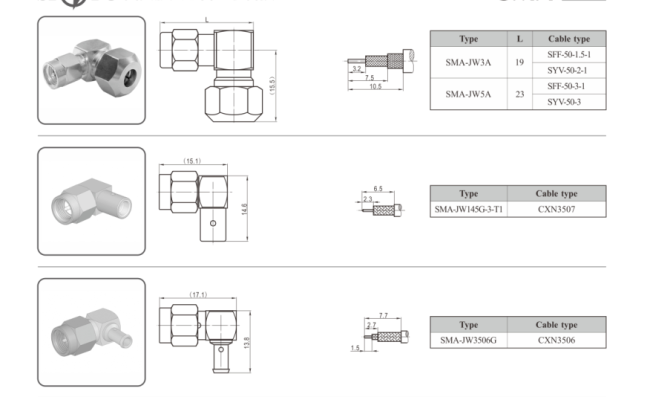

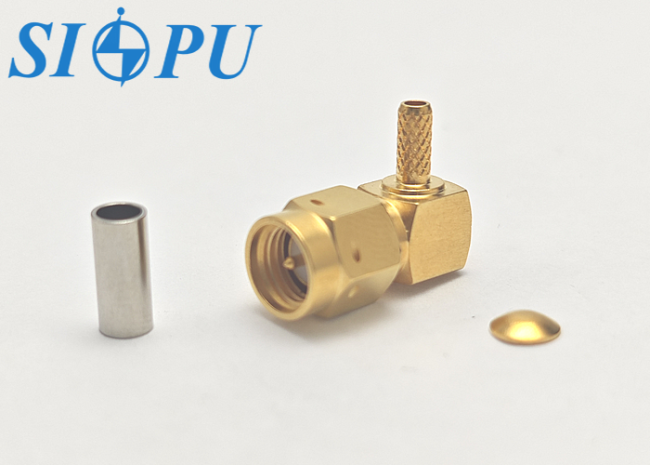

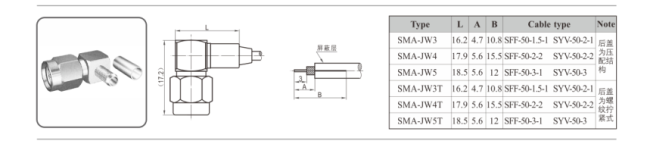

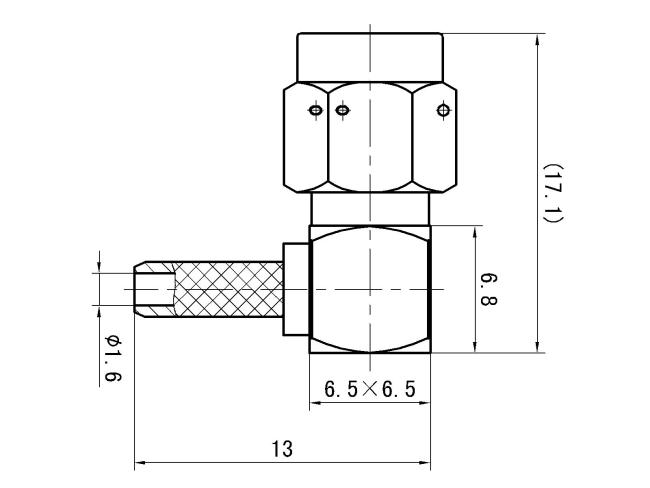

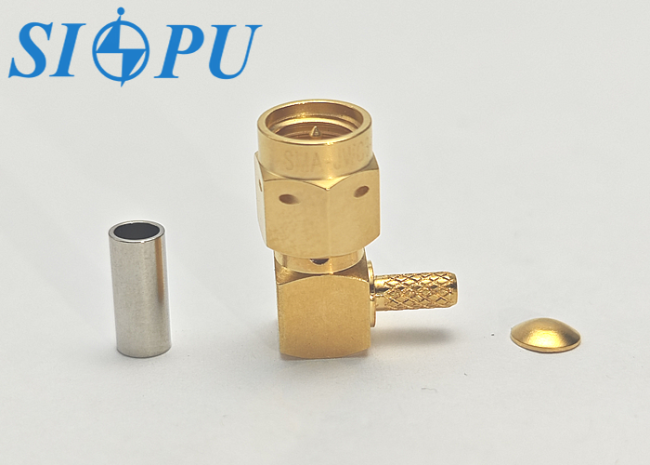

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-12.4GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.15+0.02F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.08√F(GHz)dB |
|
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Brass, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, gold plating | Sealing ring | Silicon rubber |
Product Image Gallery
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
