SMA Female RF Coaxial Connector – Flange Mounted, Compatible with RG316/U Cable
SMA Female RF Coaxial Connector – Flange Mounted, Compatible with RG316/U Cable
Product Overview
SMA series connectors are compact, threaded coaxial connectors known for their wide frequency bandwidth, excellent mechanical and electrical performance, and high reliability. Compliant with MIL-C-39012 and IEC60169-15 standards, they are fully interchangeable with international counterparts and are widely used in high-frequency signal applications.
Applications
Microwave communication, test equipment, aerospace and navigation systems, telecommunications, and network infrastructure.
Key Features
Compatible with RG316/U coaxial cable
Four-hole flange mounting for secure and stable installation
Wide frequency bandwidth with low signal loss
High mechanical durability and electrical reliability
Excellent environmental resistance and easy installation

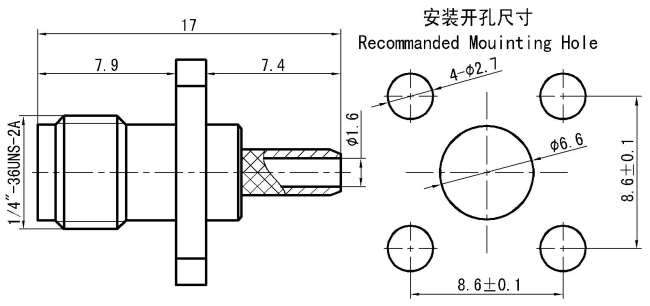

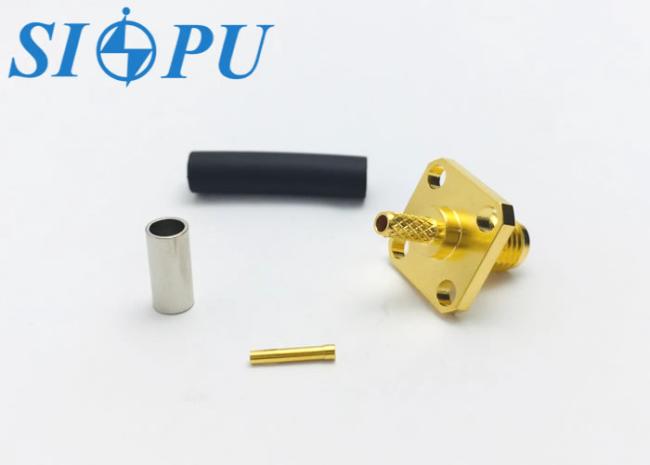

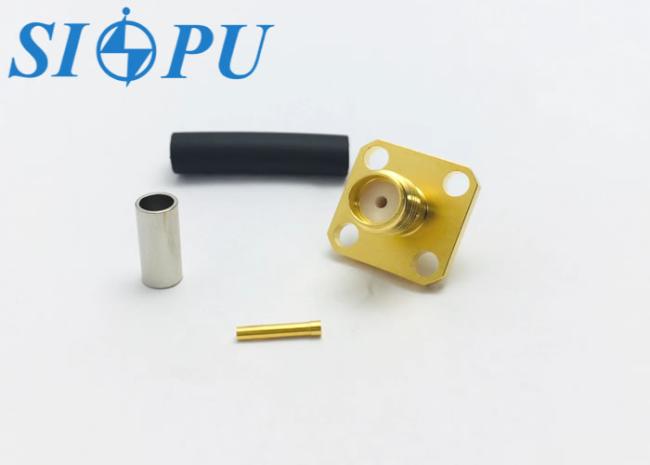

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-12.4GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.15+0.02F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.08√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
| Center conductor | Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, gold plating | / | / |
