SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
SMB Female RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
Product Overview
The SMB series is a push-in locking RF coaxial connector known for its compact size, light weight, ease of use, and excellent electrical performance. It complies with MIL-C-39012 and IEC60169-10 standards, ensuring international compatibility.
Applications
Widely used in communication base stations, wireless communication equipment, and high-frequency loop connections in electronic instruments.
Product Features

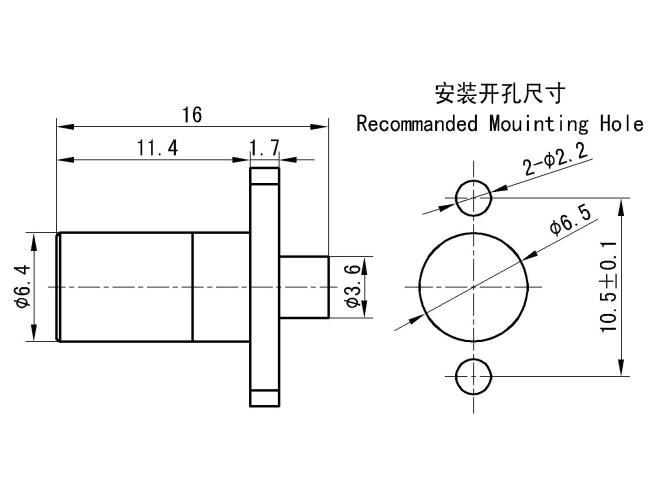

Two-hole flange mount structure
Mates with 1# semi-rigid or semi-flexible coaxial cables
Compact and lightweight design
Easy to install and use
Excellent salt spray resistance
Reliable electrical performance in demanding environments
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65~+165℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-4GHz | |
|
Dielectric withstanding voltage
|
750V |
VSWR |
≤1.34 | |
|
Insulation resistance
|
≥1000MΩ |
Insertion loss |
≤0.3√F(GHz)dB | |
|
Contact resistance |
Center conductor |
≤6.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤1.0mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating |
/ | / |

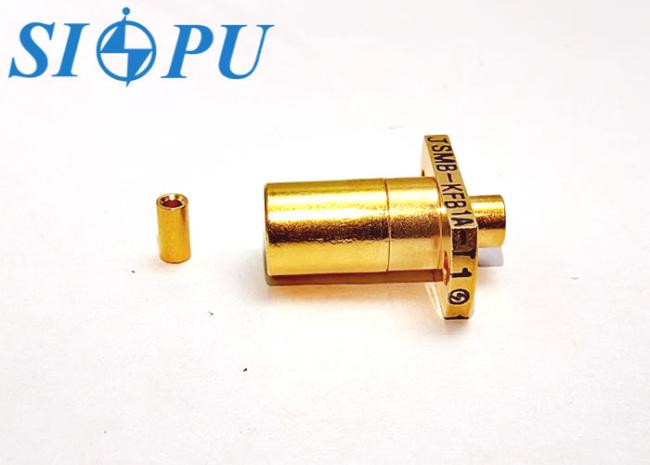

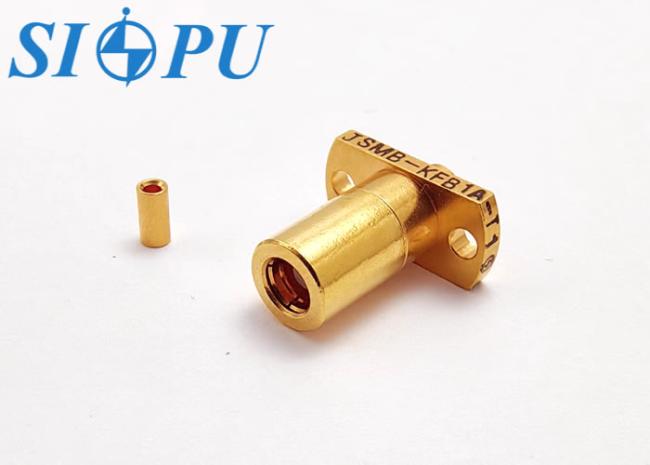

Product Image Gallery
