TNC Male RF Coaxial Connector – Nickel Plated, Compatible with RG316/U Cable
TNC Male RF Coaxial Connector – Nickel Plated, Compatible with RG316/U Cable
Product Overview
The TNC series is a threaded RF coaxial connector designed for small to medium-power applications. Developed in accordance with MIL-C-39012 and IEC 60169-17 standards, it is the threaded variant of the BNC series and is particularly well-suited for mobile communication equipment operating in high-vibration environments.
Application Scope:
Communication systems, radio equipment, instrumentation, and other RF applications.
Product Features:
Hexagonal threaded coupling for secure mechanical connection
Compatible with RG316/U coaxial cable
Wide operating frequency bandwidth
Reliable electrical contact and low signal loss
Excellent vibration resistance and long-term durability
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -55～+165℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-11GHz | |
|
Dielectric withstanding voltage
|
1500V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
| Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
| Outer conductor | ≤0.2mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, nickel plating | / | / |

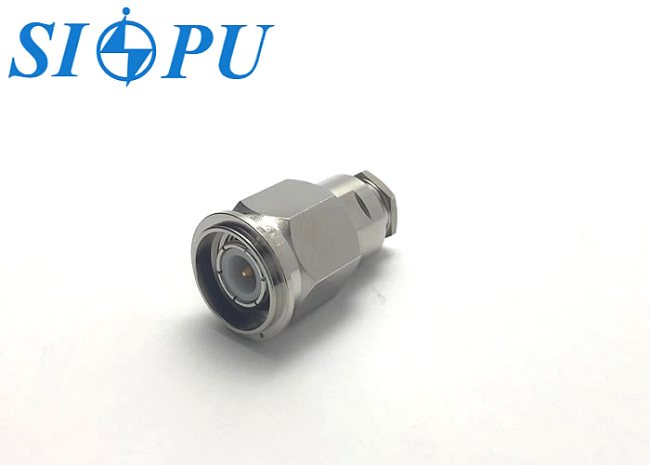

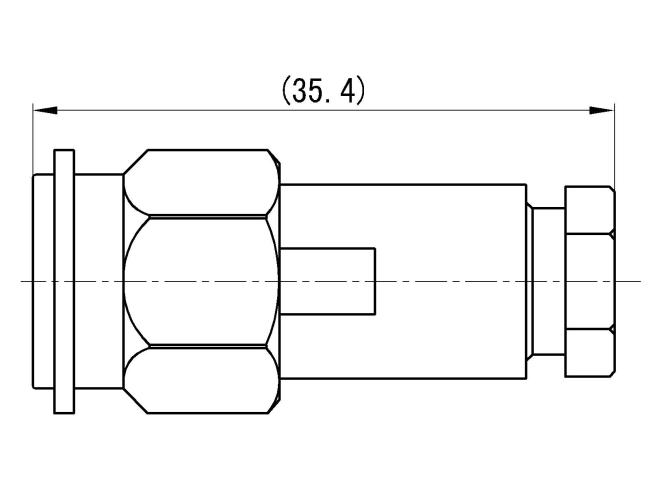

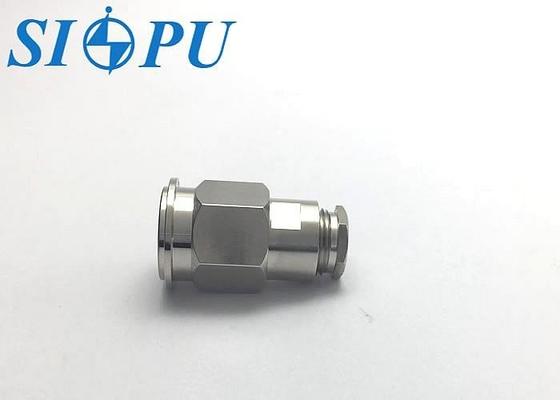

Product Image Gallery
