TNC Female RF Coaxial Connector – Flange Mount, Compatible with 2# Semi-Rigid / Semi-Flexible Cable
TNC Female RF Coaxial Connector – Flange Mount, Compatible with 2# Semi-Rigid / Semi-Flexible Cable
Product Overview
The TNC series is a small to medium-power RF coaxial connector featuring a threaded coupling mechanism. Developed in accordance with MIL-C-39012 and IEC 60169-17 standards, it offers excellent electrical performance, wide frequency bandwidth, and high connection reliability. It is especially suitable for use in mobile communication equipment operating under vibration and is interchangeable with similar international products.
Applications
Radio communication equipment
Instrumentation
Wireless and mobile communication systems
Product Features

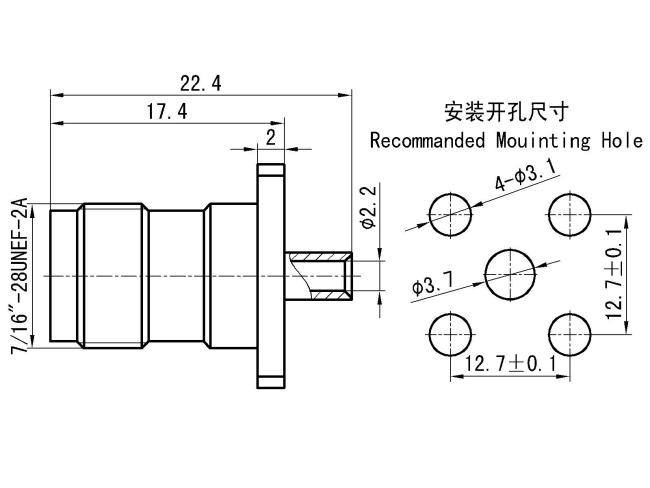

Four-hole flange mounting structure
Compatible with 2# semi-rigid / semi-flexible RF coaxial cable
Reliable threaded connection with strong vibration resistance
Wide operating bandwidth
Excellent and stable electrical performance
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -55～+165℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-11GHz | |
|
Dielectric withstanding voltage
|
1500V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
| Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
| Outer conductor | ≤0.2mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, nickel plating | / | / |

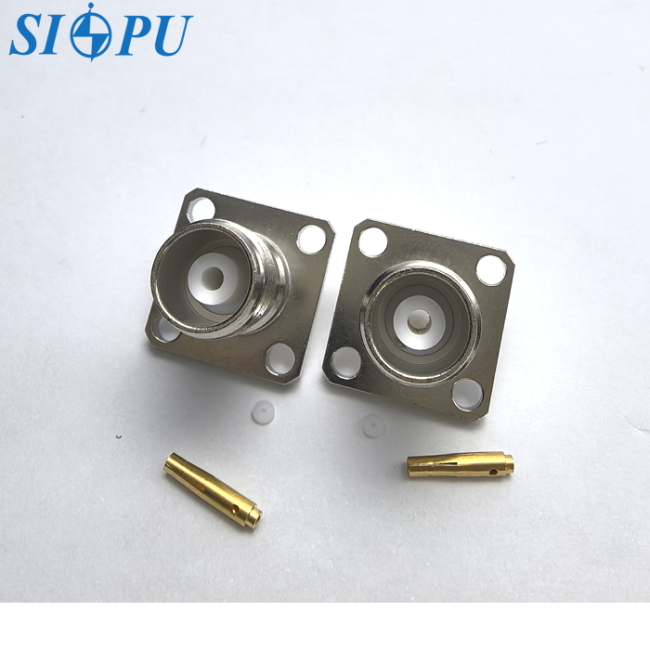

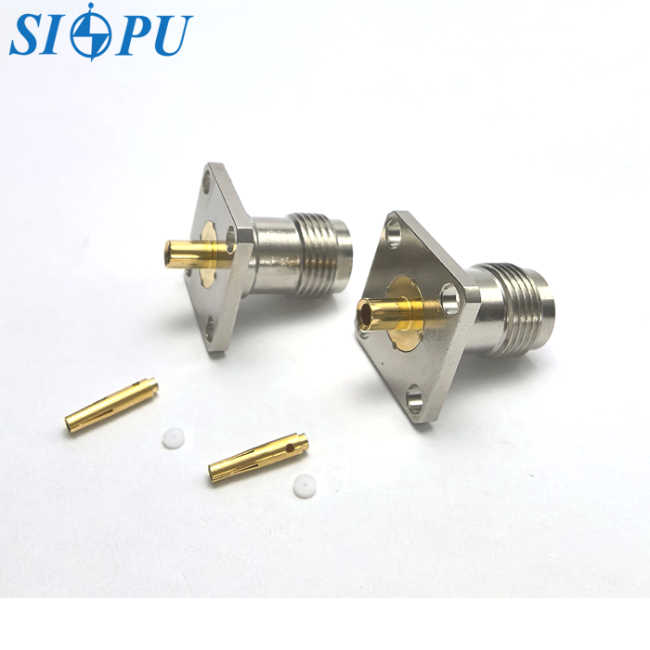

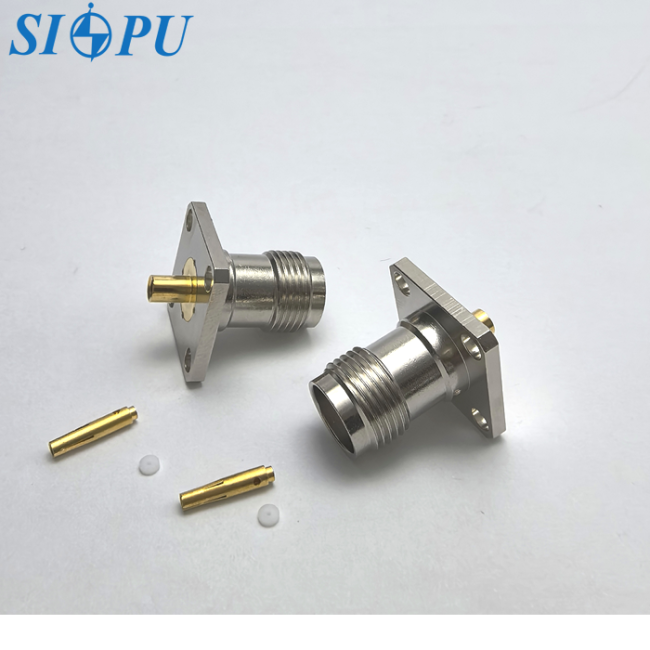

Product Image Gallery
