Product Overview
RF coaxial adapters of various specifications ensure proper interconnection between different connector series or within the same series. They serve as essential bridging components in RF systems.
Application Scope:
Widely used for system conversion and interconnection, particularly in test instruments, test cables, and RF modules.
Product Features:
Interface: N Female to SMA Male
Strong environmental resistance for stable operation in demanding conditions
High reliability and low insertion loss
Excellent electrical performance with consistent impedance matching
Suitable for laboratory testing, communication equipment, and RF setups

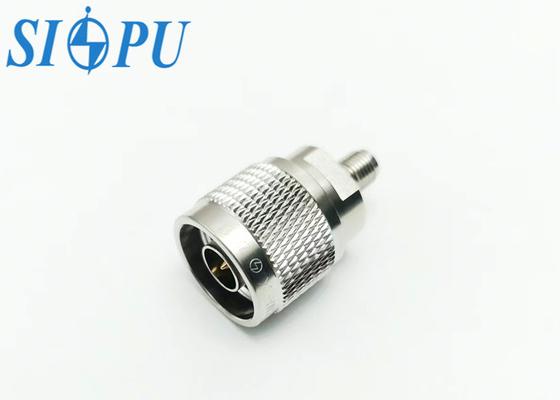

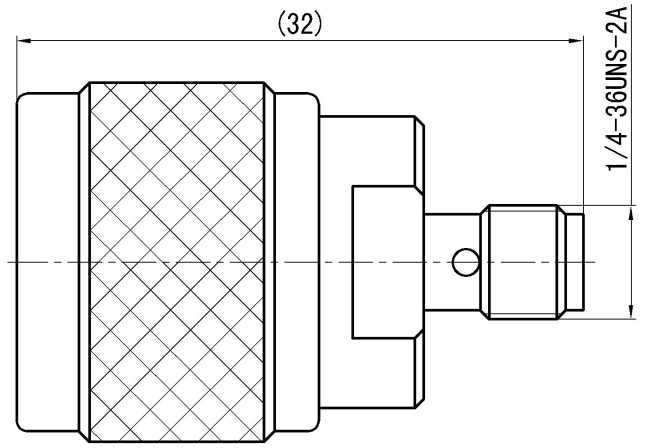

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-11GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, nickel plating | Sealing ring | Silicon rubber |

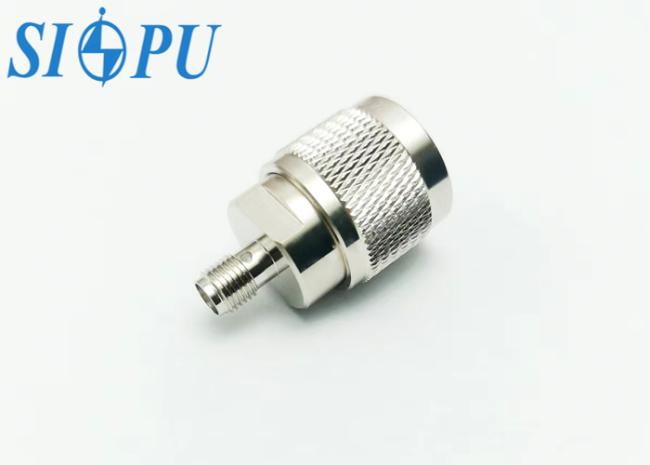

Product Image Gallery
