RF Coaxial Adapter – N Female to SMA Female (Flange Mounted)
RF Coaxial Adapter – N Female to SMA Female (Flange Mounted)
Product Overview
RF coaxial adapters ensure accurate and reliable transitions between connectors of different or identical series, acting as essential bridge components in RF systems.
Application Scope:
Commonly used in test instruments, measurement setups, and RF cable assemblies for system interconnection and signal conversion.
Product Features:
Interface: N Male to SMA Male
Four-hole flange mount for secure and stable panel installation
High environmental resistance and excellent durability
Outstanding electrical performance with low signal loss
Designed for high-reliability RF applications

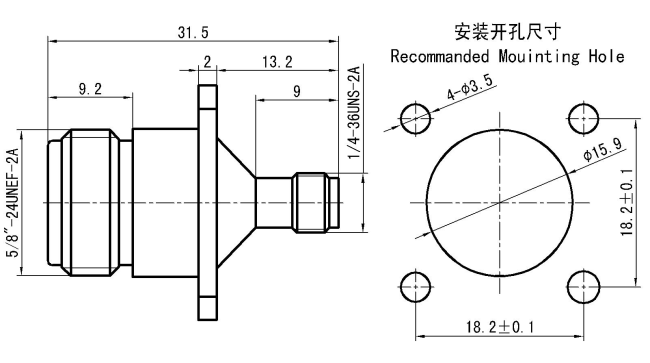

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-11GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.06√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze,gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass,nickel plating | / | / |

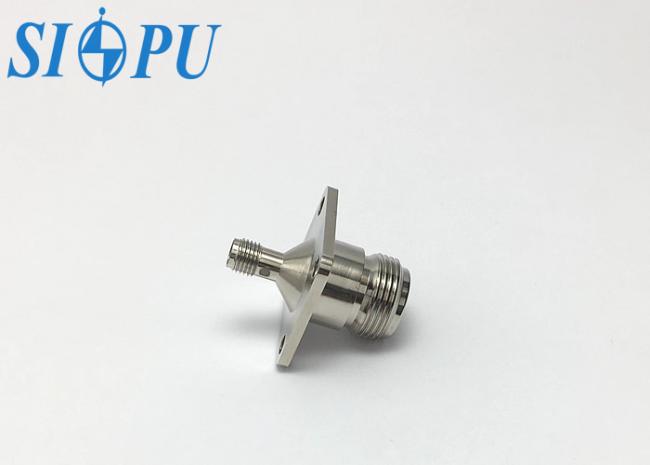

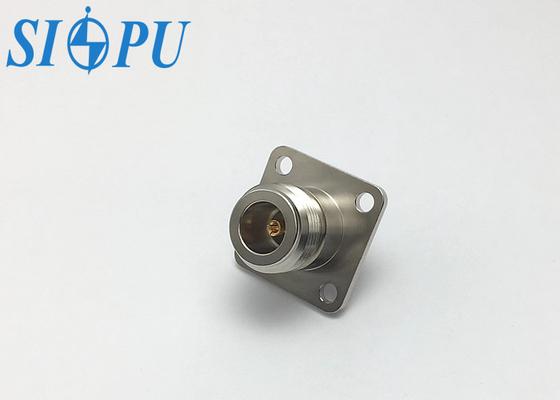

Product Image Gallery
