RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
RF Coaxial Adapter – N Female to SMA Male (Model: N/SMA-KJ)
Product Overview
This RF coaxial adapter ensures seamless and reliable interconnection between different series or identical series of RF connectors, serving as a crucial bridge in a wide range of RF systems.
Application Scope:
Commonly used for signal conversion and connectivity in RF test cables, instruments, and communication systems.
Product Features:
Interfaces: N Female to SMA Male
Delivers excellent electrical performance with minimal signal loss
Engineered for high reliability and strong environmental durability
Ideal for lab testing, field use, and precision RF applications

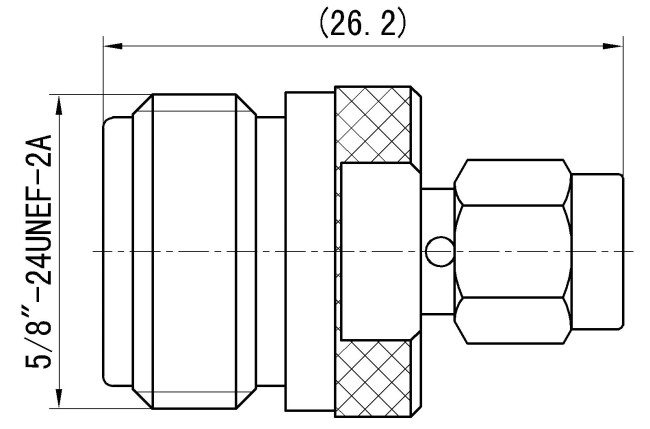

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-11GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Bronze,gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass,nickel plating | Sealing ring | Silicon rubber |

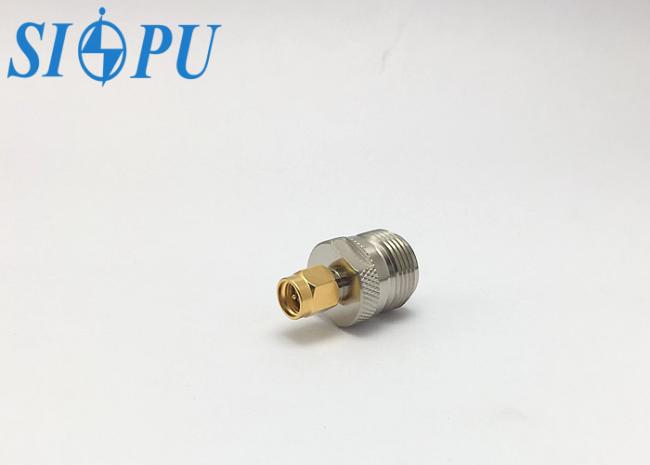

Product Image Gallery
