SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
SMA Female to SMP Female Coaxial RF Adapter SMA(K)-SMP-(K)
Product Overview
RF coaxial adapters ensure accurate and efficient interconnection between different connector series or within the same series. They serve as critical bridge components in RF systems.
Scope of Application:
Widely used in system integration, signal conversion, and RF test environments—including test instruments and test cables.
Product Features:
Interfaces: SMA Female to SMP Female
Compact design for space-constrained applications
Reliable signal transmission with excellent electrical performance
Easy mating and demating for frequent connections
Ideal for high-frequency and modular setups

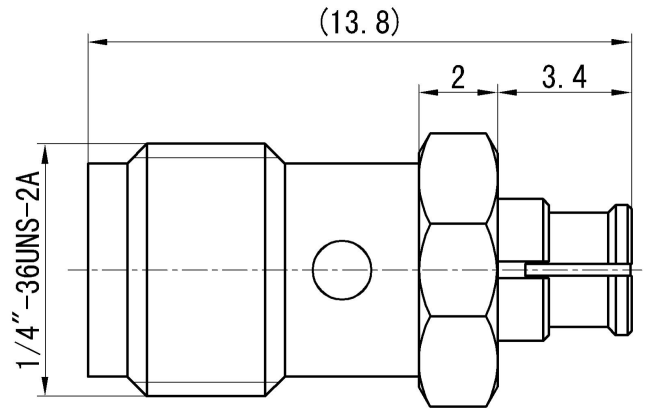

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-18GHz | |
|
Dielectric withstanding voltage
|
500V | VSWR | ≤1.05+0.012F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.07√F(GHz)dB |
|
|
Contact resistance
|
Center conductor | ≤6.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze,gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Beryllium bronze,gold plating |
/ |
/ |

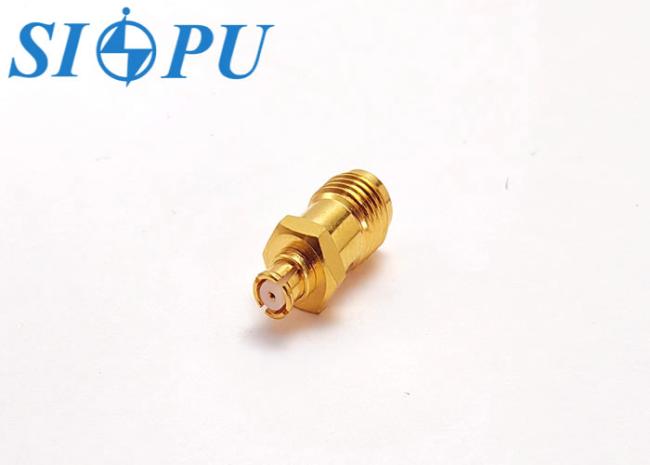

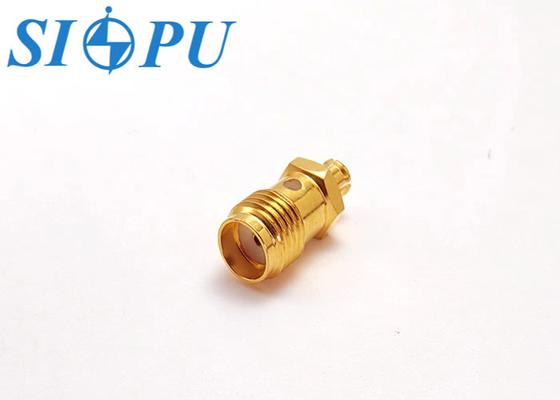

Product Image Gallery
