Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable
Straight MCX Male RF Coaxial Connector – Solder Type for RG316/U Cable
Product Overview
The MCX series is a plug-in self-locking RF connector known for its compact size, superior electrical performance, and reliable contact. It is widely used in applications where space is limited and secure, high-frequency signal transmission is required.
Applications
Transmission systems
GPS modules and antennas
Base station equipment
Instrumentation
Wireless communication systems
Product Features
Straight MCX male interface
Designed for RG316/U coaxial cable
Fixed inner conductor with solder termination
Lightweight, compact, and easy to install
Stable electrical performance with quick plug-in connection
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-6GHz | |
|
Dielectric withstanding voltage
|
750V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥1000MΩ | Insertion loss |
≤0.1√F(GHz)dB |
|
| Contact resistance | Center conductor | ≤5.0mΩ | Mechanical property | |
| Outer conductor | ≤2.5mΩ | Durability | 500Times | |
Materials and Surface Treatment
|
Center conductor
|
Brass, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Beryllium copper, gold plating | / | / |

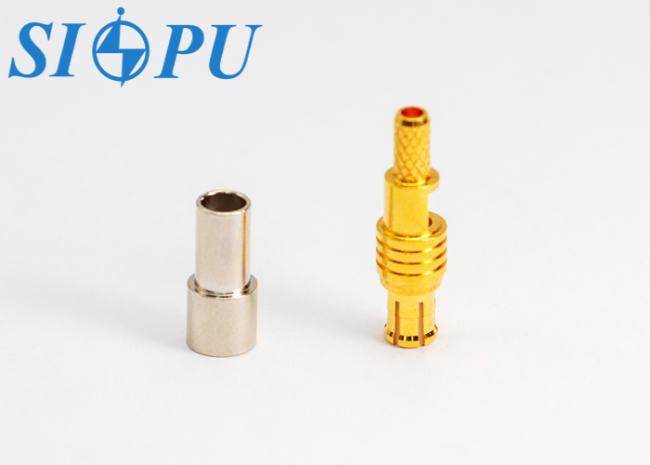

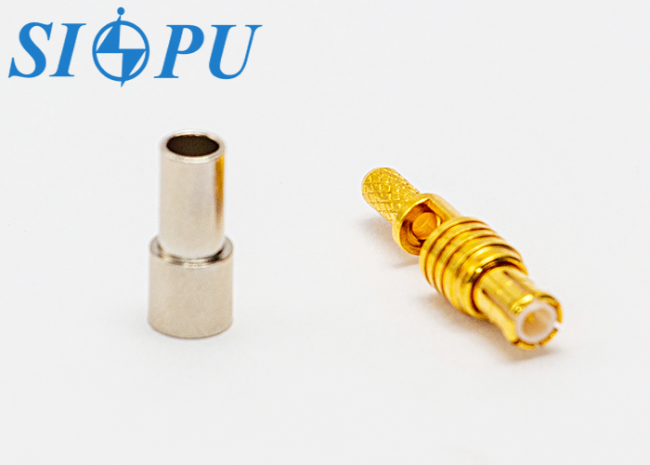

Product Image Gallery
