2.92mm Female to Female RF Coaxial Adapter – Flange Mount, 40GHz
2.92mm Female to Female RF Coaxial Adapter – Flange Mount
Product Overview
RF coaxial adapters are essential bridging components that ensure seamless connectivity both within the same connector series and across different series. Their primary function is to facilitate accurate signal transfer between systems.
Applications:
Widely used for signal conversion and system interconnection, especially in test cables, measurement equipment, and RF testing setups.
Product Features:

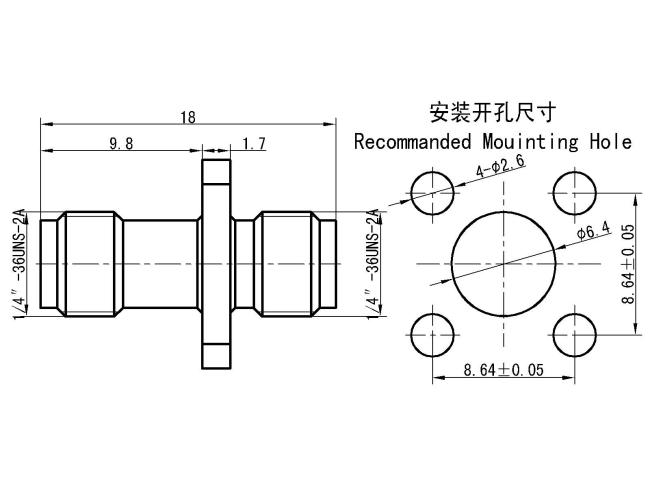

Four-hole flange mounting
Compatible with 2.92mm, SMA, and 3.5mm male connectors
Supports high-frequency transmission
Excellent electrical performance
Secure and reliable connections
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-40GHz | |
|
Dielectric withstanding voltage
|
1000V |
VSWR |
≤1.05+0.008F | |
|
Insulation resistance
|
≥5000MΩ |
Insertion loss |
≤0.05√F(GHz)dB |
|
|
Contact resistance |
Center conductor |
≤3.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.0mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating |
Insulating medium |
PEI |
|
Outer conductor
|
Stainless steel, passivating |
/ | / |

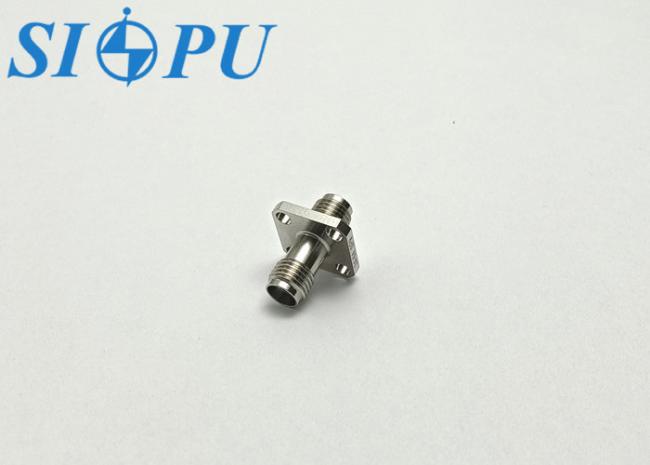

Product Image Gallery
