SMA Female Thread-Mount RF Coaxial Connector – CXN3506, 18GHz
SMA Female Thread-Mount RF Coaxial Connector – CXN3506
Product Overview
The SMA series connector is a widely used, compact coaxial connector with a threaded coupling mechanism. It offers excellent electrical performance, small size, and strong environmental resistance, making it ideal for digital communication systems and microwave equipment.
Applications:
Wireless communication, telecommunications, test equipment, network systems, and other RF applications.
Product Features:
Designed to mate with CXN3506 cable, this connector features nut-based installation. It offers wide frequency bandwidth, outstanding signal performance, high reliability, and long service life.

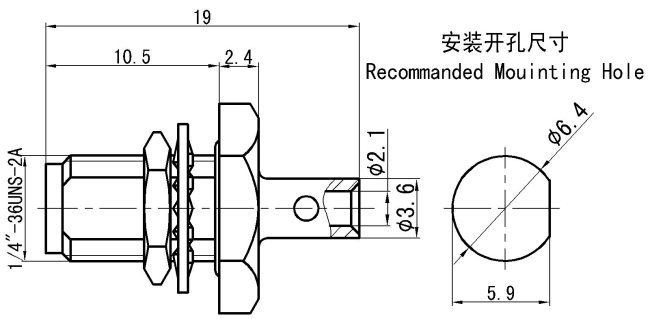

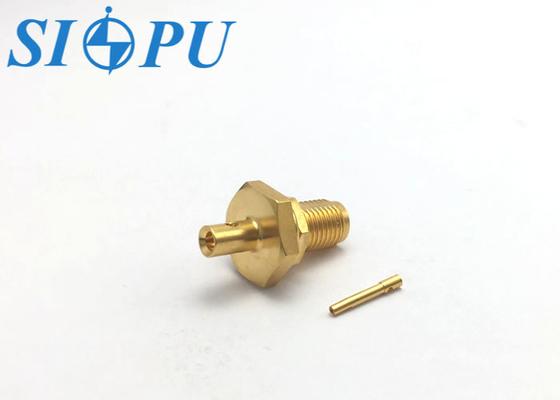

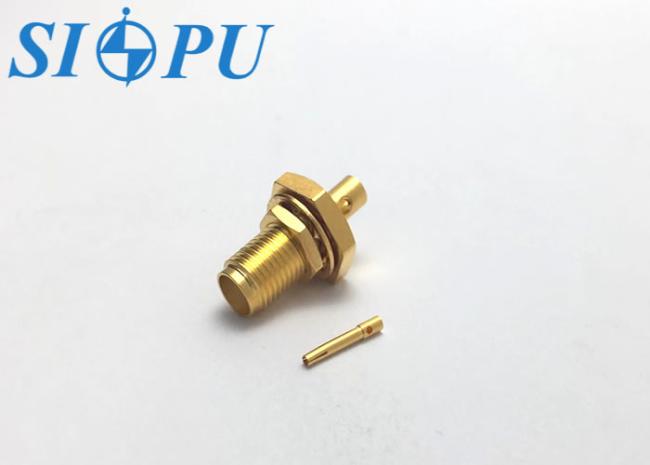

Product Appearance
Important Technical Parameters
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-18GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.05+0.012F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.05√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, gold plating |
Sealing ring | Silicon rubber |
