2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
2.92mm Male to 2.4mm Female RF Coaxial Adapter (2.92(J)–2.4(K))
Product Overview
Each type of RF coaxial adapter plays a critical role in ensuring proper signal transfer between connectors of the same or different series. These adapters serve as bridging components that maintain signal continuity and mechanical compatibility across RF systems.
Application Scope:
Widely used in system interconnections and signal conversions, especially in test instruments, measurement setups, and RF test cables.
Product Features:
Interface: 2.92mm female to 2.4mm male
Compact size, ideal for high-density or space-limited environments
High reliability with robust mechanical and electrical performance
Excellent frequency response and low insertion loss
Suitable for high-frequency precision applications up to 40 GHz

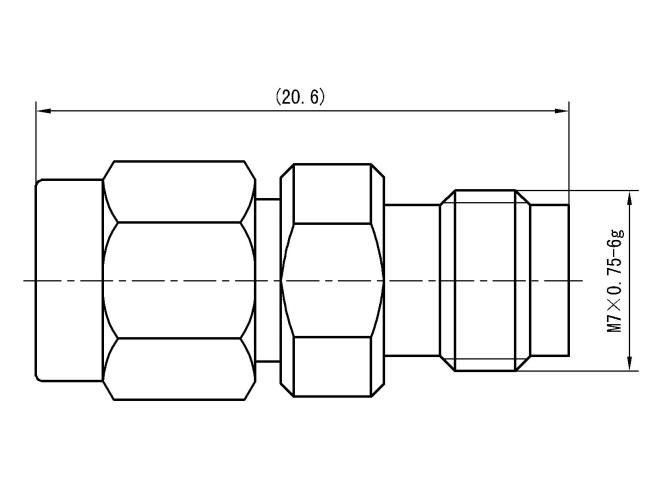

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-40GHz | |
|
Dielectric withstanding voltage
|
500V | VSWR | ≤1.05+0.008F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.05√F(GHz)dB |
|
|
Contact resistance
|
Center conductor | ≤4.0mΩ | Mechanical property | |
| Outer conductor | ≤2.5mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze,gold plating | Insulating medium | PEI |
|
Outer conductor
|
Brass,gold plating | Sealing ring | Silicon rubber |

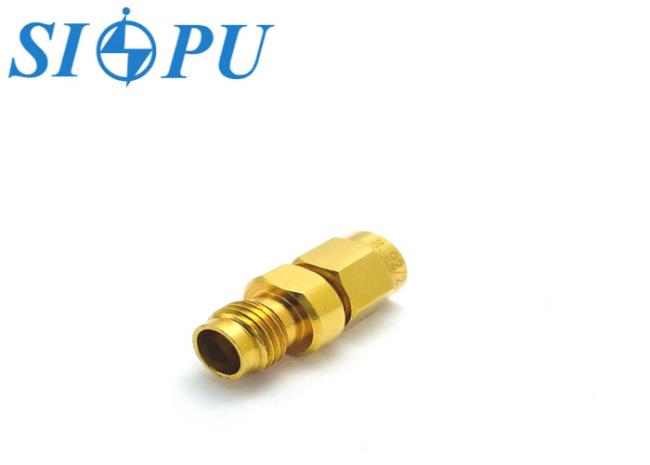

Product Image Gallery
