BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
BMA Female to SMA Female RF Coaxial Adapter BMA(K)-SMA-(K)
Product Overview
RF coaxial adapters are essential for enabling seamless transitions between connectors of the same or different series. They act as bridge components to ensure proper connectivity in RF systems.
Applications
Commonly used in test instruments, RF test cables, and system conversion setups across telecom, aerospace, and industrial applications.
Product Features
Interfaces: BMA Male to SMA Male
Supports wide frequency bandwidth with minimal signal loss
Delivers excellent electrical performance and high signal integrity
Compact, robust design offering long-term reliability

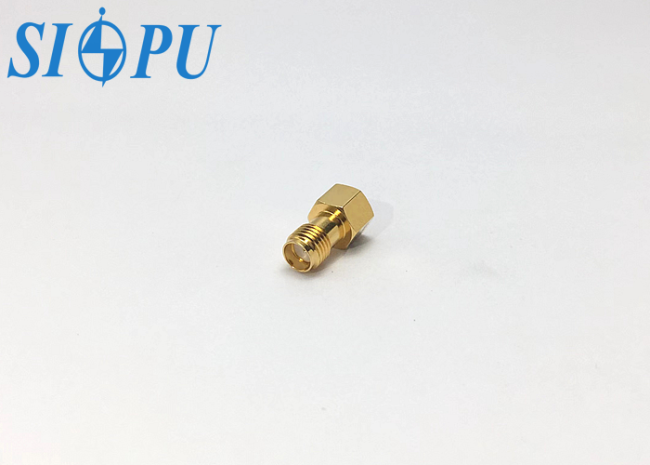

Product Appearance
Important Technical Parameters
|
Electrical property
|
Temperature range
|
-65～+125℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range
|
DC-18GHz | |
|
Dielectric withstanding voltage
|
1000V |
VSWR |
≤1.08+0.012F(GHz) | |
|
Insulation resistance
|
≥5000MΩ |
Insertion loss
|
≤0.05√F(GHz)dB |
|
|
Contact resistance
|
Center conductor
|
≤3.0mΩ |
Mechanical property
|
|
|
Outer conductor
|
≤2.0mΩ |
Durability
|
500 times | |
Materials and Surface Treatment
| Center conductor | Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, gold plating
|
/ | / |
