SSMA Male Coaxial RF Termination Load – 1W Power Rating
SSMA Male Coaxial RF Termination Load – 1W Power Rating
Product Overview
The coaxial termination load is a passive microwave component designed to absorb RF/microwave energy from a transmission line, preventing signal reflection and enhancing circuit matching. It is ideal for precision testing and system calibration in high-frequency electronic environments.
Application Scope
System testing of radio communication equipment
RF signal transmission analysis
Microwave instrumentation
Laboratory and field measurement applications
Indoor distributed terminal setups
Product Features
SSMA male connector interface
Rated for 1W power dissipation
Wide operating bandwidth with excellent impedance matching
Compact form factor for space-constrained installations
Robust mechanical construction with superior electrical performance
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-65～+125℃ | |
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-18GHz |
|
Power
|
1W |
VSWR |
≤1.2
|
|
Mechanical property |
Durability |
500times |
|
Materials and surface treatment
|
Center conductor
|
Brass, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating |
Sealing ring |
Silicon rubber |

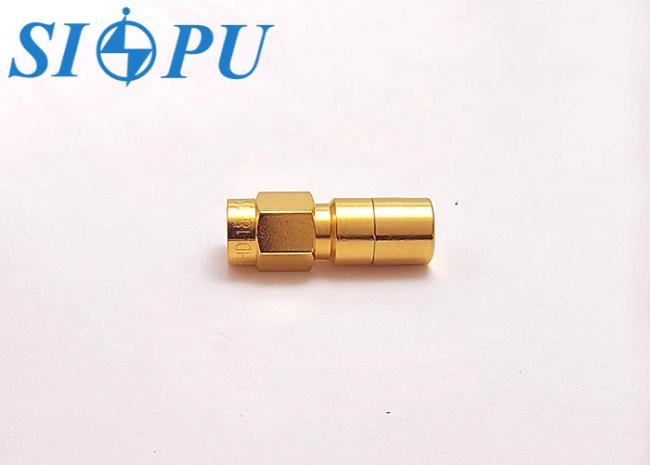

Product Image Gallery
