SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
SSMB Male RF Coaxial Connector – Straight Microstrip Type, Flange Mounted, Solderable
Product Overview
The SSMB series coaxial connector is a miniature push-in connector known for its small size, light weight, ease of use, and good shock resistance. Compliant with IEC 60169-19, it is compatible with internationally standardized counterparts, making it suitable for global applications in high-frequency systems.
Applications
Wireless communication equipment
Electronic instruments
Compact RF devices and modules
Product Features
Two-hole flange mount for secure installation
Straight microstrip design
Compact and lightweight
Easy and reliable push-in connection
Excellent solderability and mechanical stability
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-55～+155℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-3GHz | |
|
Dielectric withstanding voltage
|
500V |
VSWR |
≤1.35 | |
|
Insulation resistance
|
≥1000MΩ |
Insertion loss |
≤0.06√F(GHz)dB | |
|
Contact resistance |
Center conductor |
≤5.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.5mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
QSn, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating |
/ | / |

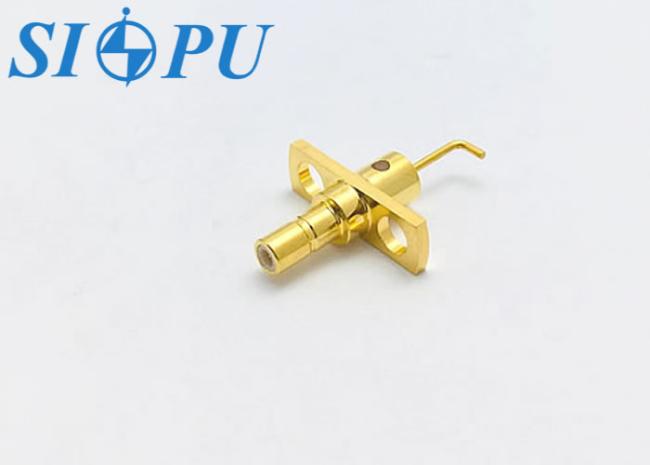

Product Image Gallery
