SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
SSMB Female RF Coaxial Connector – Compatible with RG178/U Cable
Product Overview
The SSMB series is a miniature push-in locking RF connector known for its compact size, light weight, fast and convenient connection, and strong shock resistance. It is internationally compatible with similar standard products, making it a reliable choice for global applications.
Applications
Electronic instruments
Radio communication equipment
Compact RF modules and devices
Product Features
Push-in snap-lock design for quick and secure connection
Compatible with RG178/U coaxial cable
Small size and lightweight
High connection reliability and ease of use
Good resistance to vibration and mechanical stress
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range |
-55～+155℃ | ||
|
Characteristic impedance
|
50Ω |
Frequency range |
DC-3GHz | |
|
Dielectric withstanding voltage
|
500V |
VSWR |
≤1.5 | |
|
Insulation resistance
|
≥1000MΩ |
Insertion loss |
≤0.06√F(GHz)dB | |
|
Contact resistance |
Center conductor |
≤5.0mΩ |
Mechanical property |
|
|
Outer conductor |
≤2.5mΩ |
Durability |
500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating |
Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating |
/ | / |

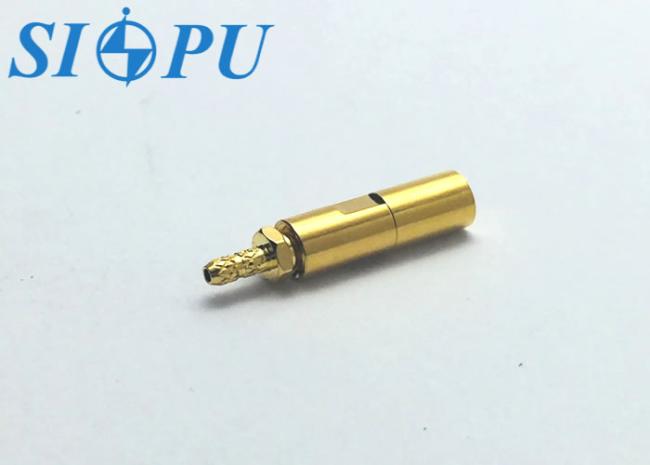

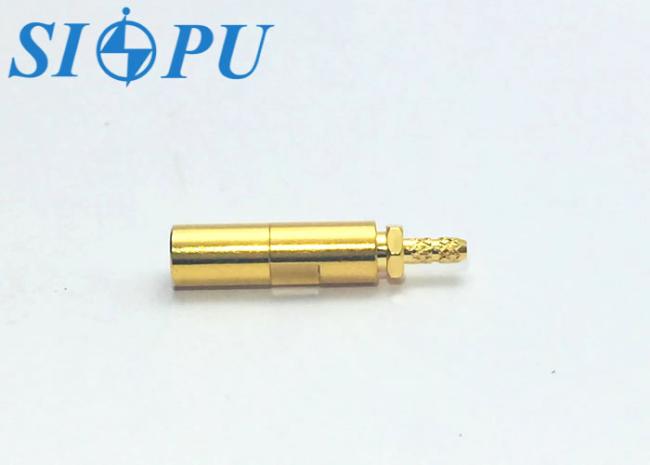

Product Image Gallery
