SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))
SMA Male to SSMA Male RF Coaxial Adapter – Stainless Steel (SMA(J)-SSMA(J))
Product Overview
RF coaxial adapters in various specifications ensure proper connectivity between different series of connectors or within the same series. They typically function as bridging components, maintaining signal integrity across interface transitions.
Application Scope:
Commonly used in test cables, measurement instruments, and RF systems for signal conversion and interconnection between components.
Product Features:
Interfaces compatible with both SMA and SSMA series connectors
Compact size, ideal for space-constrained environments
High reliability and mechanical durability
Excellent electrical performance with low insertion loss and stable impedance
Suitable for high-frequency and precision RF applications

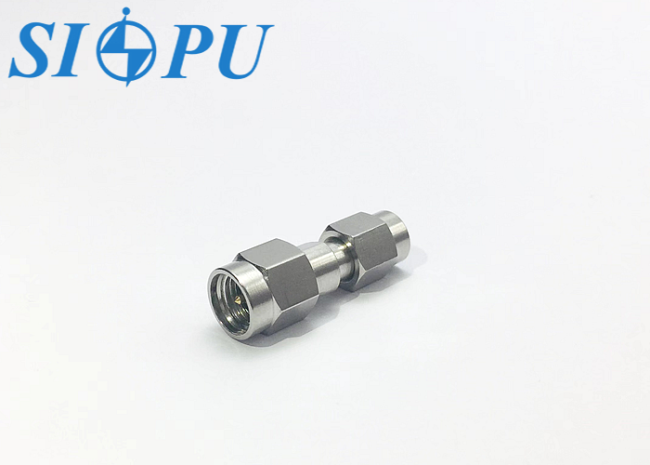

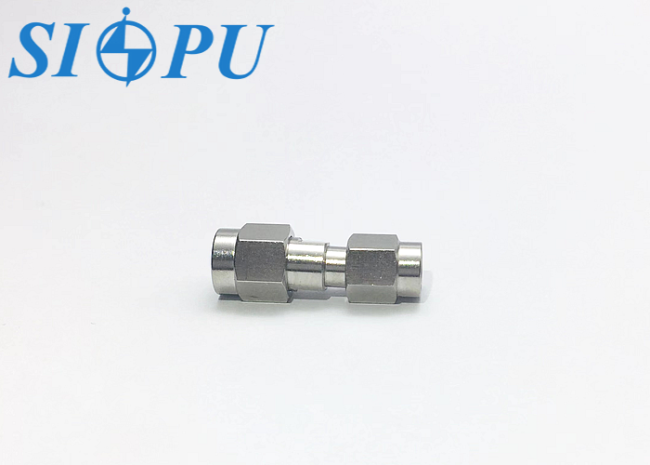

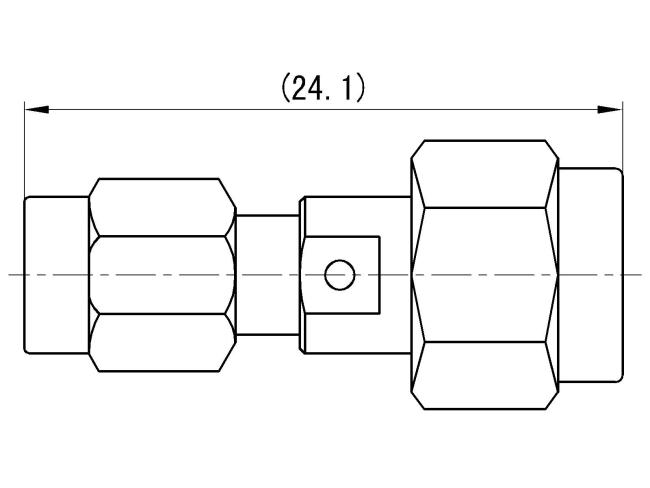

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-18GHz | |
|
Dielectric withstanding voltage
|
750V | VSWR | ≤1.05+0.012F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.05√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤6.0mΩ | Mechanical property | |
| Outer conductor | ≤2.5mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Brass, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Stainless steel, passivating |
Sealing ring | / |
