SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))
SMA Female to MCX Male RF Coaxial Adapter – Brass, Gold Plated (SMA(K)–MCX(J))
Product Overview
RF coaxial adapters are essential components that ensure proper interface conversion between connectors of the same or different series. They primarily serve as bridge connections, enabling seamless signal transmission across diverse RF systems.
Application Scope:
Widely used in system conversion and interconnection, especially in test instruments, RF modules, and coaxial test cables.
Product Features:
Interfaces: SMA male to MCX female
Compact size, ideal for space-limited RF designs
High reliability and long service life
Excellent electrical performance with low insertion loss
Suitable for high-frequency, high-precision RF applications

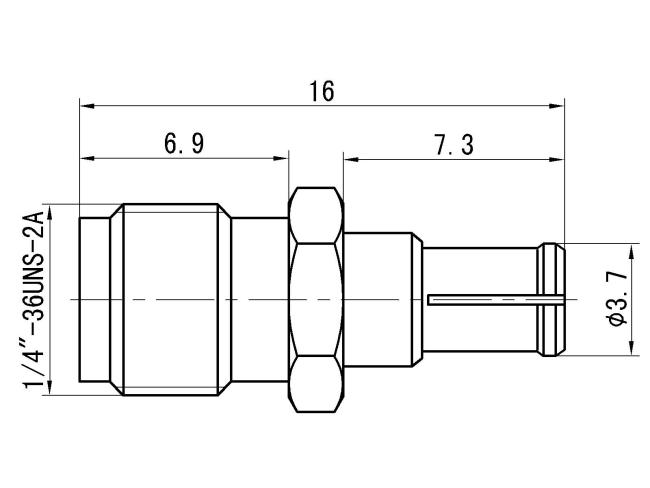

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -55～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-6GHz | |
|
Dielectric withstanding voltage
|
750V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥1000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
|
Contact resistance
|
Center conductor | ≤5.0mΩ | Mechanical property | |
| Outer conductor | ≤2.5mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Berylliun bronze,gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass,gold plating | / | / |

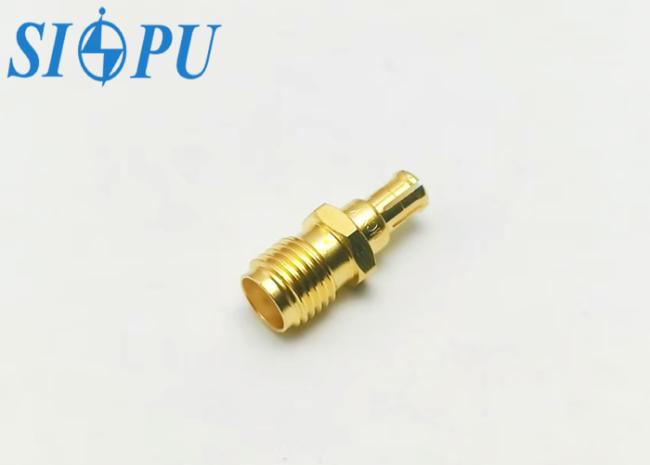

Product Image Gallery
