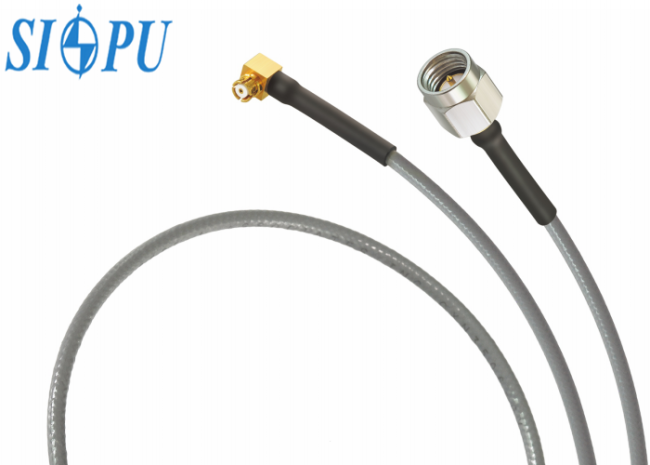

SMA Male to SMP Female RF Coaxial Adapter – for CXN3506 Cable Assemblies

RF coaxial cable assemblies typically consist of three components:
Connectors at both ends, coaxial cable, and heat shrink tubing for protection.

Based on cable flexibility, assemblies fall into three types: semi-steel, semi-flexible, and flexible cables — this product features a flexible low-loss cable.

Product Features
    Connector A (Left End): SMA-J3506G
    Connector B (Right End): SMP-KW3506
    Cable Type: CXN3506 flexible RF coaxial cable
    Shielding Effectiveness: >90dB
    Frequency Range: DC–18GHz
    Phase Stability: ≤ ±3° @ 18GHz
    Insertion Loss: Ultra-low
    Minimum Static Bend Radius: 12.7mm
    Velocity Ratio: 83%

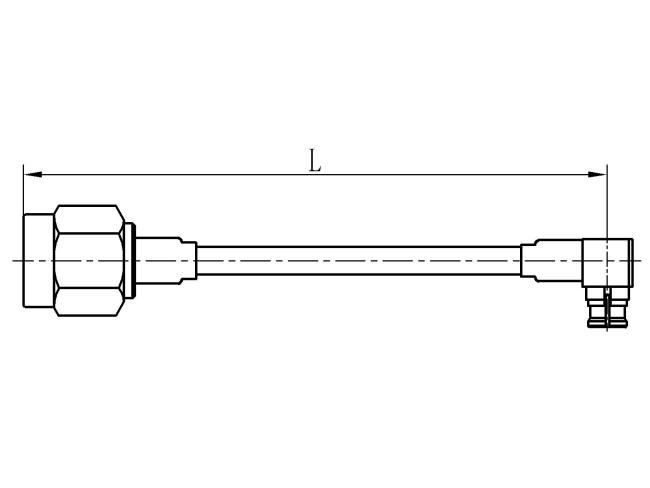

    Length: Customizable per client requirements
    Weight: Lightweight, ideal for compact setups

Applications
    RF communication systems
    Radar and navigation systems
    Test and measurement instruments
    Aerospace and military electronics
