TNC Flange-Mount RF Coaxial Connector – Compatible with RG178/U Cable
TNC Flange-Mount RF Coaxial Connector – Compatible with RG178/U Cable
Product Overview
The TNC series consists of small to medium-power RF connectors with a threaded coupling mechanism, offering excellent electrical performance and mechanical reliability. Designed to operate at frequencies up to 11 GHz, these connectors are ideal for high-frequency signal transmission in demanding environments.
Product Features

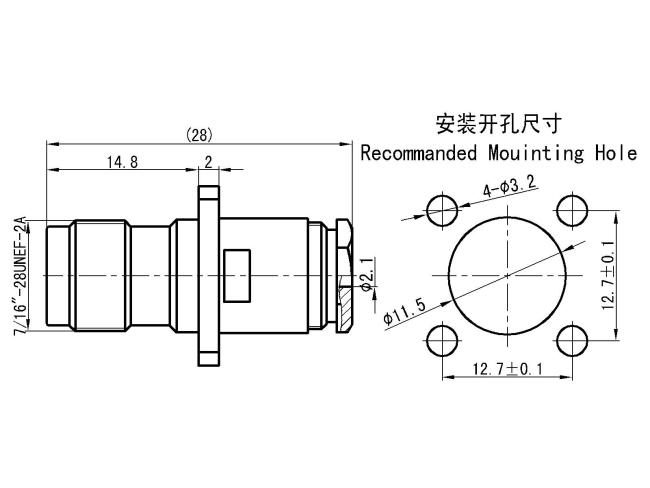

Four-hole flange mount for secure panel installation
Compatible with RG178/U and other No.2 series flexible coaxial cables
Wide operating bandwidth
Strong vibration resistance and reliable electrical performance
Threaded design ensures a stable and durable connection
Applications
Wireless communication equipment
RF and microwave instrumentation
Industrial and military communication systems
Product Specifications
Important Technical Parameters
|
Electrical property
|
Temperature range | -55～+165℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-11GHz | |
|
Dielectric withstanding voltage
|
1500V | VSWR | ≤1.3 | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss |
≤0.06√F(GHz)dB |
|
| Contact resistance | Center conductor | ≤2.0mΩ | Mechanical property | |
| Outer conductor | ≤0.2mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating | Insulating medium | PTFE |
|
Outer conductor
|
Brass, nickel plating | / | / |

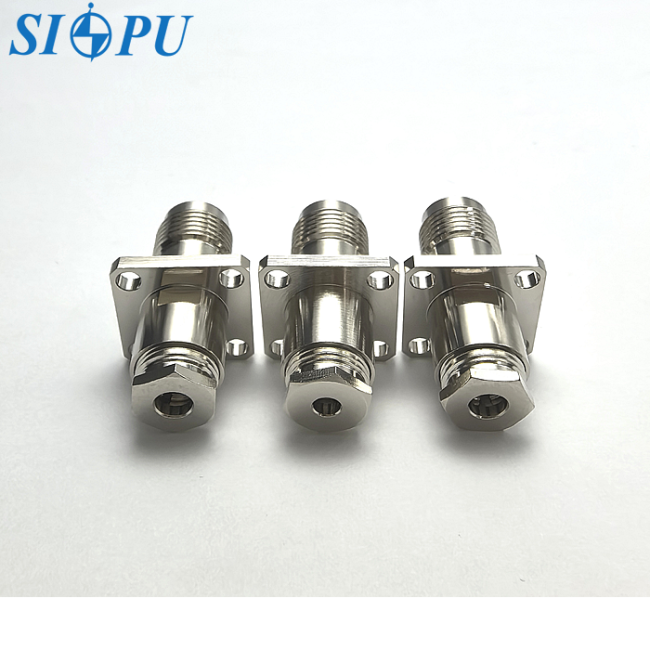

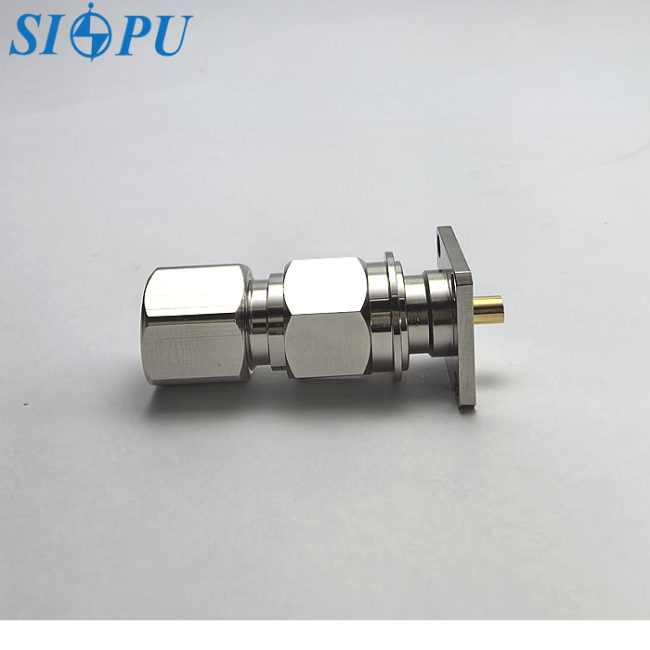

Product Image Gallery
