Robust Brass SMA 4-Hole Flange-Mounted Receptacle Gold-Plated RF Coaxial Connector for Stable Frequency Transmission
SMA 4-Hole Flange-Mounted Receptacle: Robust RF Coaxial Connector for Stable High-Frequency Transmissionf
Applicable Scenarios
Core Advantages
- Innovative Locking Performance: The threaded coupling structure achieves "micron-level" docking accuracy, combined with the reinforced fixing effect of flange mounting, which can withstand continuous vibration and temperature fluctuations. It maintains connection stability under working conditions from -55℃ to 125℃, far exceeding the industry average standard.
- Full-Frequency Band Performance Guarantee: Maintains extremely low VSWR (≤1.2) and insertion loss (≤0.15dB) over a wide frequency range (DC to 18GHz), with a signal transmission fidelity of 99.9%, perfectly adapting to high-frequency applications such as 5G millimeter waves and satellite communications.
- Long-Lasting and Durable Nature: Adopts military-grade plating technology and high-strength alloy materials. After more than 500 insertion and extraction cycles, the electrical parameters remain stable, significantly reducing the maintenance frequency and costs throughout the equipment's life cycle.
- Maximized Space Efficiency: The volume is 40% smaller than traditional N-type connectors, enabling 16-channel parallel installation in a 1U height chassis, providing a high-density connection solution for modular equipment.

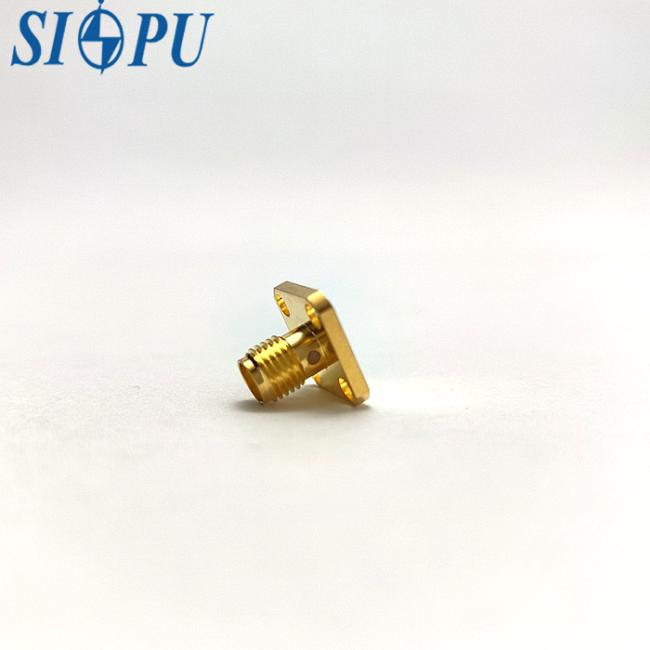

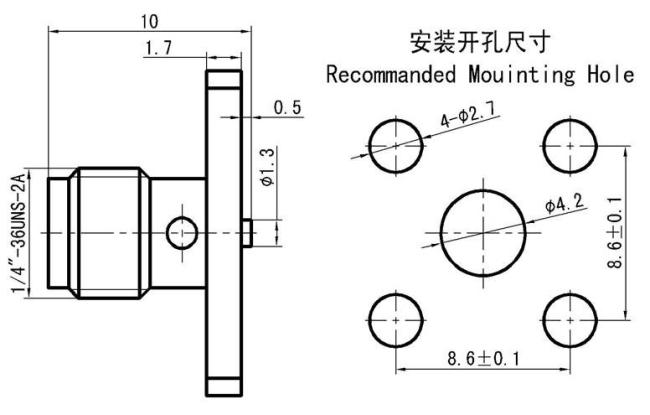

Product Appearance
Important Technical Parameter
|
Electrical property
|
Temperature range | -65～+125℃ | ||
|
Characteristic impedance
|
50Ω | Frequency range | DC-18GHz | |
|
Dielectric withstanding voltage
|
1000V | VSWR | ≤1.05+0.012F(GHz) | |
|
Insulation resistance
|
≥5000MΩ | Insertion loss | ≤0.05√F(GHz)dB | |
|
Contact resistance
|
Center conductor | ≤3.0mΩ | Mechanical property | |
| Outer conductor | ≤2.0mΩ | Durability | 500times | |
Materials and Surface Treatment
|
Center conductor
|
Beryllium bronze, gold plating | Insulating medium |
PTFE |
|
Outer conductor
|
Brass, gold plating | / | / |

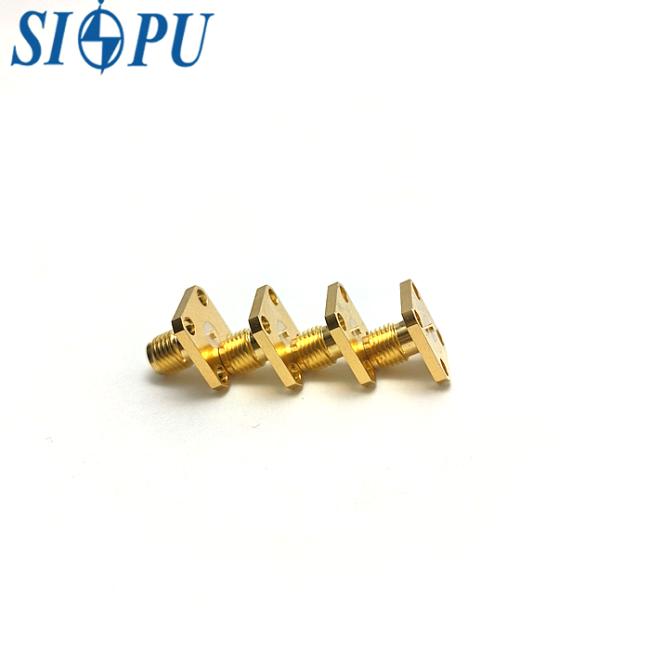

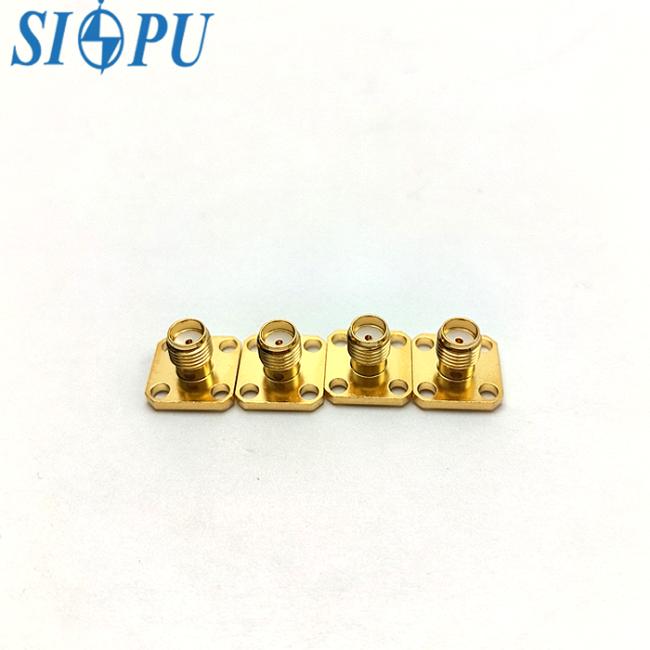

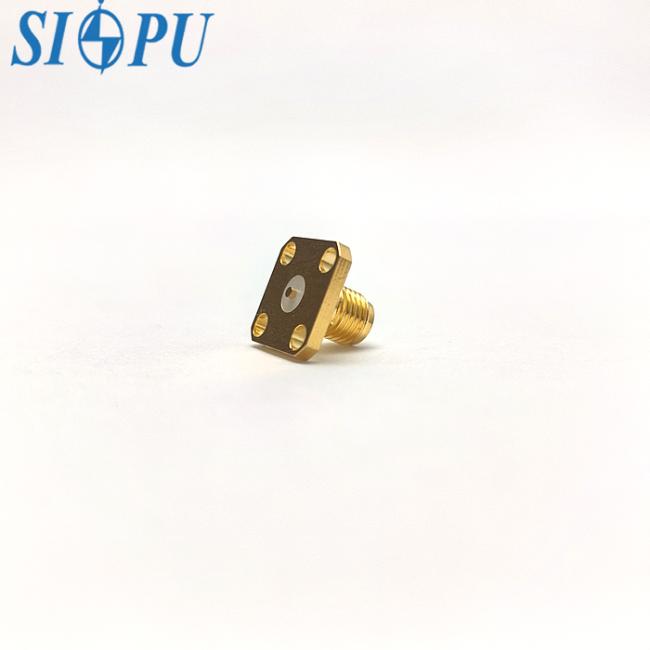

Product Image Gallery
