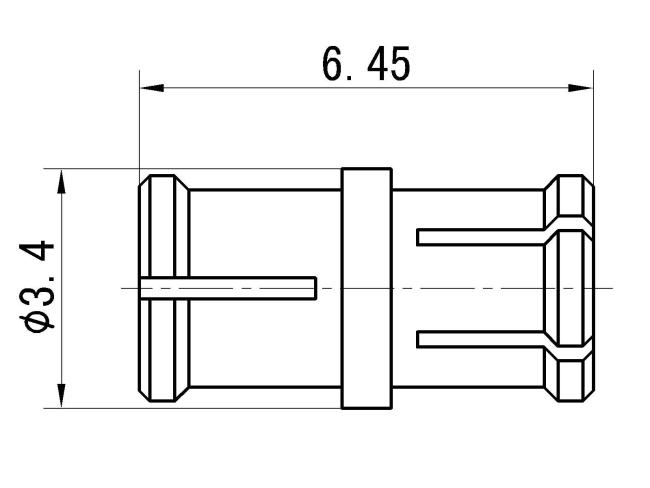

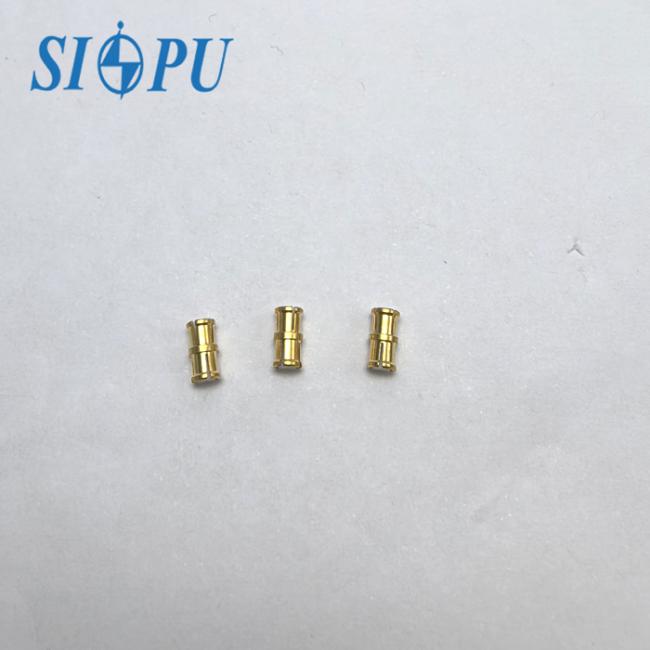

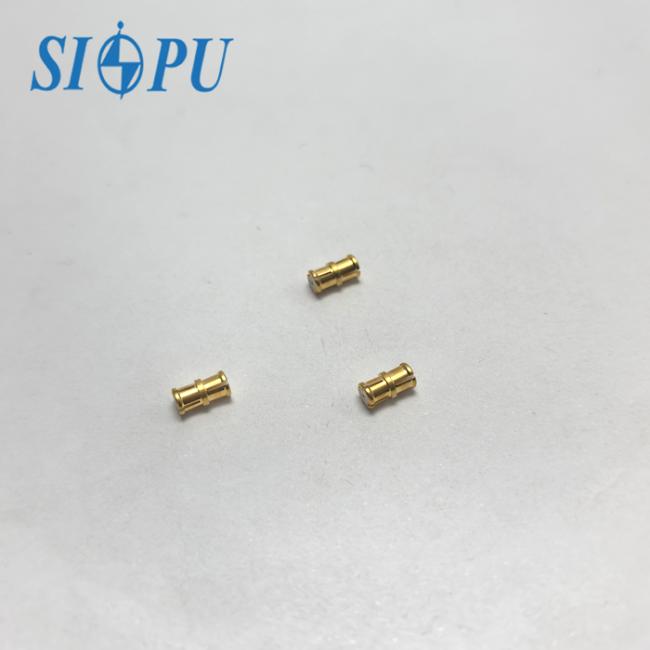

SMP Female to SMP Female RF Coaxial Adapter

Product Overview:

The SMP series is an ultra-miniature RF coaxial connector featuring a push-on, self-locking design, ideal for high-frequency, high-density, and high-data-rate applications. It is commonly used in compact RF modules, test systems, and quantum computing setups.

Application Areas:

Broadband installations, test and measurement, antenna systems, aerospace, and quantum computing.

Product Features:

• Both ends feature SMP-K (female) interfaces, with symmetrical mechanical structure, allowing for non-directional use.
• Offers low insertion loss, excellent RF performance, light weight, and high resistance to environmental stress.
• Suitable for applications up to 40 GHz.

Key Technical Specifications

Electrical Property			Temperature Range	-65～+125℃
Characteristic Impedance		50Ω	Frequency Range	DC-40GHz
Dielectric Withstanding Voltage		500V	VSWR	≤1.5
Insulation Resistance		≥5000MΩ	Insertion Loss	≤0.07dB
Contact Resistance	Center Conductor	≤6.0mΩ	Mechanical Property
	Outer Conductor	≤2.0mΩ	Durability	500 Cycles

Materials & Finish
