Light Weight and Easy Installation Prefabricated Steel Structure Warehouse for Autocad
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
30-60days
Product Description
Light Weight Easy Installation Industrial shed design prefabricated Steel Structure Warehouse
Introduction:
| Light Weight Easy Installation Industrial shed design prefabricated Steel Structure Warehouse | |
| Item | Specification |
| Steel column | Q235,355B welded square tube column/Box column |
| Steel beam | Q235,355B welded H section steel/hot-rolled H section steel |
| Steel purlin | C/Z section purlin or square tube column |
| Downpipe | UPVC |
| Gutter | Stainless steel gutter/UPVC gutter |
| Roof material | Corrugated steel sheet/sandwich panel |
| Wall material | Sandwich panel and glass curtain wall |
| Door | Aluminium door |
| Window | Aluminium window |
Structure Plan:
Production of Light Weight Easy Installation Industrial shed design prefabricated Steel Structure Warehouse
Why choose Light Weight Easy Installation Industrial shed design prefabricated Steel Structure Warehouse? - Cost Savings Price per square meter can be 25% lower than conventional buildings. Site erection cost is low because of faster erection times and easier process. 2. Quality Control Designed and fabricated in-factory with strict quality control. The fabrication process includes design and engineering, as well as detailing and manufacturing at the factory. 3. Quick Erection All steel components are fabricated at the factory and linked by bolts at the site. So the erection process is fast, step by step, easy to install. 4. Flexibility Steel buildings are flexible in any requirement of design, easy to expand in the future and also economically with low transportation costs. 5. Energy Efficiency Nowadays, steel buildings are the green solution for the environment with CO2 reduction, energy efficiency, and recycle.
Installation of Light Weight Easy Installation Industrial shed design prefabricated Steel Structure Warehouse
1.Foundation construction (pre-embedded anchor bolts), detail need to according to the foundation construction drawing.
2.Column installation
One worker commands truck crane how to move, 3 ~ 4 workers cooperate with crane to install the steel column, put column to anchor bolt location.
3.Beam installation
After completing the installation of adjacent two steel column, then main beam begin to install.
4.Installing roof & wall purlin
The roof and wall purlin will be installed after finishing column and beam. Bolting the purlin on the main structure.
5.Fixing wall and roof sheet
To fix the wall sheet on wall purlin by self-tapping screw; then fix the roof sheet.
6.Fixing the cover
To install the cover on the corner, eave, window and door opening.
7,Install windows and doors.

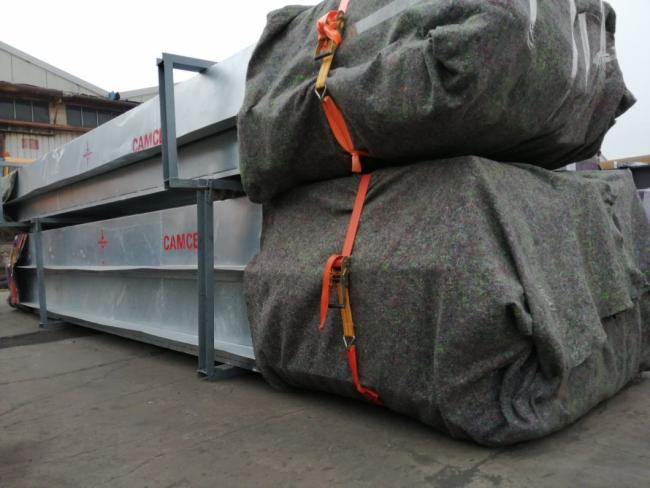

Package and loading of Light Weight Easy Installation Industrial shed design prefabricated Steel Structure Warehouse
