Easy to Install DN500 PE Float for Sand/Slurry Dredging Durable and Orange Outer Shell
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
Negotiable
Product Description

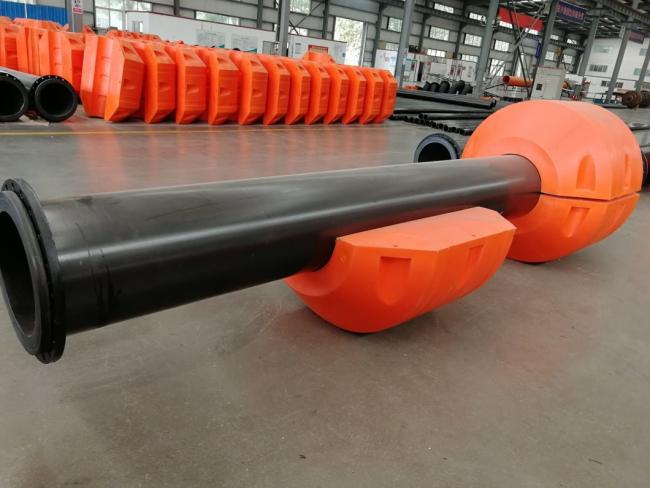

PE FLOAT
The hull of PE floats are rotational molded from PE material, inside filled with high density polyurethane foam(Foam density varied from the pipe float using condition). The PE floats are most widely applied for dredging pipeline, and cable, it is ideal to replace the steel pontoons for the floating discharging pipe.
PE Float Parameters
| No. | Item | Performance | |
| 1 | Tensile Strength Mpa≥ | 12 | |
| 2 | Elongation at break %≥ | 10 | |
| 3 | Impact Strength KJ/m2 | 31 | |
| 4 | Bending Strength Mpa≥ | 15.7 | |
| 5 | Weather Resistance (total 3.5GJ/m2 aging capacity) | Elongation at break %≥ | 10 |
| 6 | OIT 200ºC mm≥ | 10 | |
PE Float Dimensions
| Float I.D. (mm) | Float O.D.(mm) | Float Length(mm) | Thickness of Hull(mm) | Floater Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |

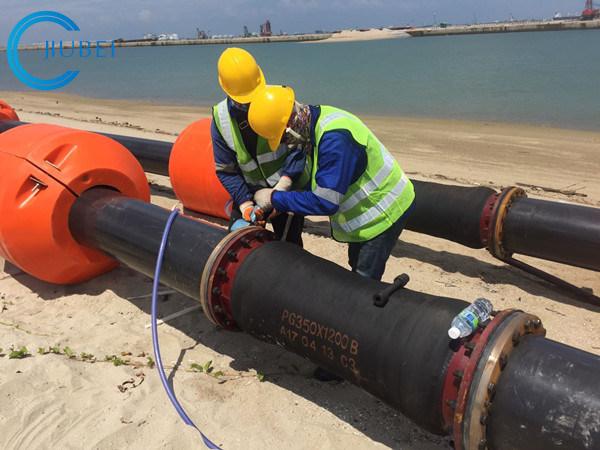

Installations of the PE Float

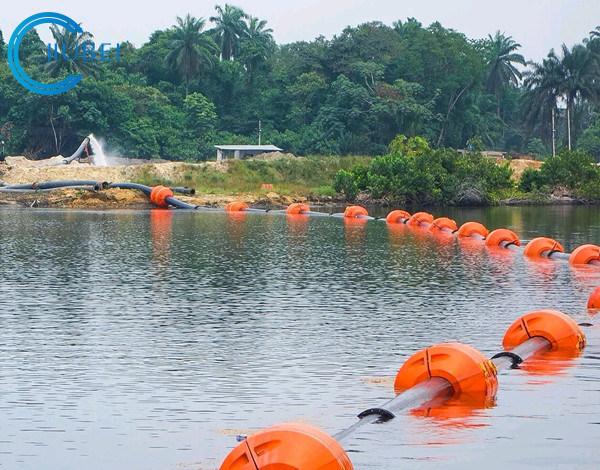

Cases of P Floats
