ISO 9001 2008 Certified JB280 PVC Float Type Silt Curtain for Marine Pollution Control
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
Negotiable
Product Description

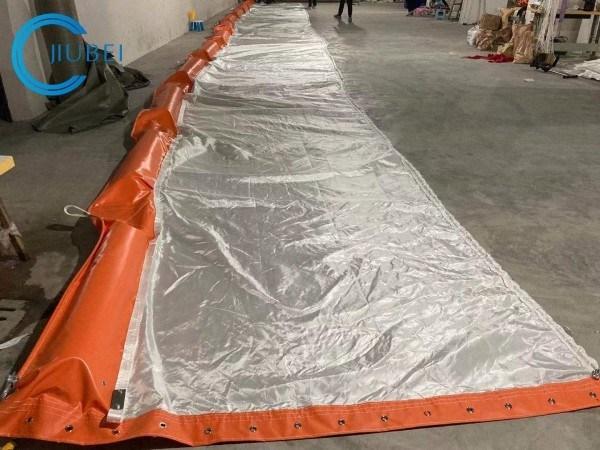

PVC Silt Curtain
PVC Silt Curtain are essential equipment for preventing and controlling oil spill and dredging project pollution in water areas. To prevent and control oil spill pollution, the first step is to prevent the spread of oil spills, and currently, PVC silt curtain are widely used to intercept oil spills. The oil containment fence can not only intercept oil spills, but also guide them and concentrate them as much as possible for further recovery and treatment.
Specifications:
| Name/Model | PVC Silt Curtain | ||||||
| WGV1500 | WGV1100 | WGV1000 | WGV750 | WGV600 | |||
| Total Height | 1500mm | 1100mm | 1000mm | 750mm | 600mm | ||
| Free board | 460mm | 360mm | 320mm | 260mm | 130mm | ||
| Draft | 800mm | 560mm | 520mm | 390mm | 380mm | ||
| Unit length | 20m | ||||||
| Connection | The tent buckle type threading joint has good sealing performance and convenient connection. The joint of the same type of oil fence has complete interchangeability | ||||||
| Skirt material | Oil resistant, weather resistant, UV resistant, wear-resistant, corrosion-resistant, and seawater resistant PVC cloth | ||||||
| Color | Orange red high-strength PVC cloth | ||||||
| Float | Built in cylinder foam floating body | Built in cylinder foam floating body | Built in cylinder foam floating body | Built-in water droplet floating body | Built in cylinder foam floating body | ||
| Float Length | 1100mm | 1100mm | 1100mm | 1100mm | 750mm | ||
| Weight | 10.5kg/m | 8.5kg/m | 6.75kg/m | 4.9kg/m | 2.375kg/m | ||
| Total Buoyancy | 870kN/m | 0.68 kN/m | 0.43kN/m | 0.22kN/m | 0.135kN/m | ||
| Total buoyancy to weight ratio | 8.45:1 | 8.1:1 | 7.6:1 | 4.6:1 | 5.8:1 | ||
| Waterline section width | 197mm | 165mm | 150mm | 135mm | 120mm | ||
| Vertical center of gravity | 1080mm | 720mm | 540mm | 440mm | 370mm | ||
| Counterweight materials | 13mm welding chains | 12mm welding chains | 10mm welding chains | 8mm welding chains | 6mm welding chains | ||
| Counterweight | 3.61 kg/m | 3.16 kg/m | 2.16kg/m | 1.39kg/m | 0.78kg/m | ||
One-Stop service of dredging pipeline and accessories---Shandong Jiubei Trading Co.,Ltd
Shandong Jiubei Trading Co.,Ltd is a trading company, located at the famous water city -Liaocheng, which mainly focus on supplying the products of dredging materials: PE float, wear resistant PE/UHMWPE dredging pipeline, heavy duty rubber dredging hose, navigation and mark buoys , silt curtains and so on. The company established in 2018, with 5 senior engineers, and one inspection team and one export team, our target is to offer clients with one stop service from designing to collecting goods.
Our Benefits:
1, We have been worked in this field for more than 10 years, and have very rich workshop sources, familiar with each workshop's advantage, will help you find the most suitable product.
2, We have inspection team, since we get your order, our inspection people will follow on your goods' production process and quality,for production process, each day we have production status update; for inspection, we have raw material inspection, first goods inspection, random inspection and ex-works inspection as well as other tests for the exact goods.
3, We have professional and experienced export team to handle the export issues.
Our Company promises: Qualified goods,reasonable price, delivery in time, and satisfied after-sales service!
Wish to be your cooperator in China!
Shandong Jiubei Trading Co.,Ltd is a trading company, located at the famous water city -Liaocheng, which mainly focus on supplying the products of dredging materials: PE float, wear resistant PE/UHMWPE dredging pipeline, heavy duty rubber dredging hose, navigation and mark buoys , silt curtains and so on. The company established in 2018, with 5 senior engineers, and one inspection team and one export team, our target is to offer clients with one stop service from designing to collecting goods.
Our Benefits:
1, We have been worked in this field for more than 10 years, and have very rich workshop sources, familiar with each workshop's advantage, will help you find the most suitable product.
2, We have inspection team, since we get your order, our inspection people will follow on your goods' production process and quality,for production process, each day we have production status update; for inspection, we have raw material inspection, first goods inspection, random inspection and ex-works inspection as well as other tests for the exact goods.
3, We have professional and experienced export team to handle the export issues.
Our Company promises: Qualified goods,reasonable price, delivery in time, and satisfied after-sales service!
Wish to be your cooperator in China!
