Industrial Machinery LED Display Vacuum Resin Potting Machine with Automatic Grade
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

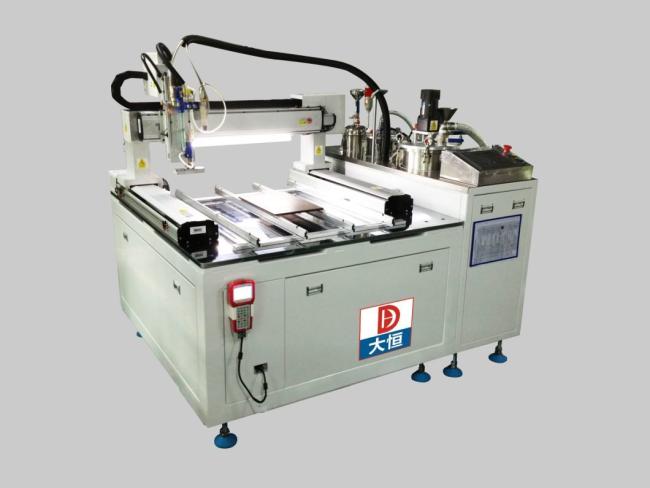

Industrial Machinery LED Display Vacuum Resin Potting Machine 3 Axis Epoxy Glue Dispensing Robot
| Model No: | PJL-100 |
| Mixing Ratio | 100:100-10:100(1:1-1:10) Adjustable |
| Metering precision | ±1% |
| Outflow speed | 1g/sec-15g/sec |
| Mixing precision | ±1% |
| Mixing mode | Dynamic mixing /Static mixing |
| Glue Viscosity | Lower than 20000 CPS(mPa·s) |
| Control mode | PLC + Touch Screen |
| Control system | Independent R&D |
| Measuring mode | Stepping motor/High-precision, wear-resistant,long-life Gear pump |
| Working voltage | AC 220V 50Hz/60Hz |
| Power requirement | 3.55KW |
| Air pressure requirement | 4.5-8KG |
| Machine Dimension | 1500(L)*1200(W)*1500(H)mm |
| Weight | approx 260 KG |
| Work environment | Humidity: 20%~98%RH; Temperature: 0~+40°c |
| Model | PGB-700 | Voltage | 220V-380V |
| XYZ axis | 700*700*80(mm) | Application | led,electronic,filter |
| Glue support | Silicone, epoxy resin, urethane | Certification | CE, RoHS |
| Power | 3600w | Warranty | 1years |
| Item Name | mixing and dispensing | Function | DC 12V-14V |
| Ratio support | 1:1 to 10:1 | MOQ | 1 Piece |
| Gluing Speed | 5-66g/5s Adjustable | Price | depends your glue feature |
| Air Pressure: | 0.5-0.7Mpa | Port | Huangpu |
