330V 52 Meters Truck Mounted Concrete Line Pump Hb52k for High Building Construction
Price:
$16,999.00/sets 1-2 sets
MOQ:
1 set
Delivery Time:
Negotiable
Brand:
Be Focus
Product Description
Products Description

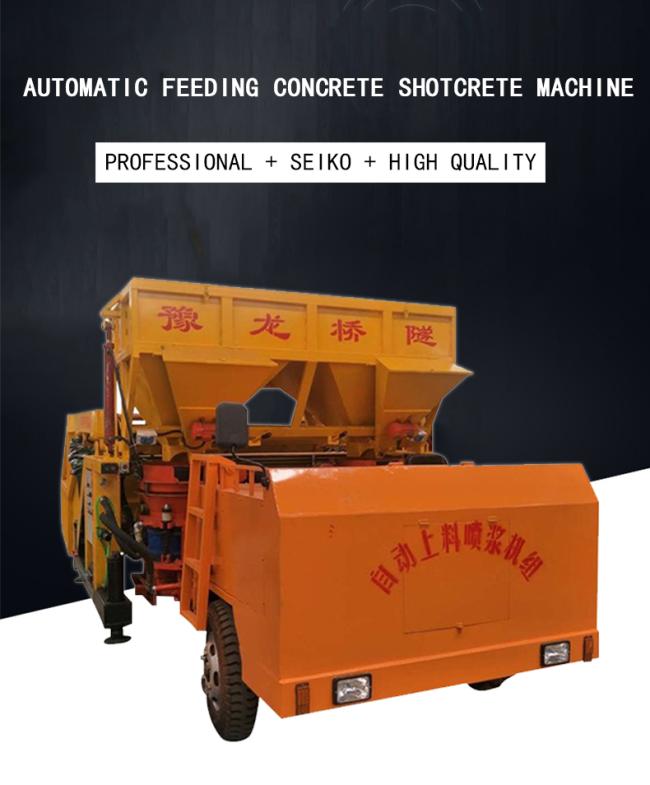

High efficiency truck-mounted Automatic Feeding Concrete Shotcrete Machine
The hoisting automatic feeding and shotcreting unit is a medium-sized machine that integrates shotcreting and automatic feeding,which mainly solves the disadvantages of manual feeding in traditional shotcreting operation. At present, it is widely used in engineering construction, mining, tunnel culvert, subway, slope support, and underground engineering shotcrete construction.
Product Paramenters
Vehicle mounted automatic loading and spraying unit | ||||
Double machine single hopper | Double machine single hopper | |||
Single cylinder engine power | 35hp/26Kw | 35hp/26Kw | ||
Four cylinder engine power | 62hp/42Kw | 62hp/42Kw | ||
Minimum distance between vehicle chassis and ground | 220mm | 220mm | ||
wheel base | 2800mm | 2800mm | ||
Operating Weight | 380V | 380V | ||
Voltage level | 6000KG | 6300KG | ||
productive power | 7m³/ h*2 | 7m³/ h*2 | ||
Max conveying distance (horizontal) | 100m | 100m | ||
Max aggregate size | 20mm | 20mm | ||
Working wind pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | ||
blast consumption | 10-12m³/ min | 10-12m³/ min | ||
Sprayer motor power | 7.5Kw | 7.5Kw | ||
Oil pump motor power | 15Kw | 15Kw | ||
Inner diameter of feed pipe | 57mm | 57mm | ||
Overall dimension | 4200mm*2800mm*1900mm | 4700mm*2800mm*2400mm | ||
Lifting Height | 4200mm | 4200mm | ||
Hopper volume | 3m³ | Upper hopper 3m³ Lower hopper 3m³ | ||

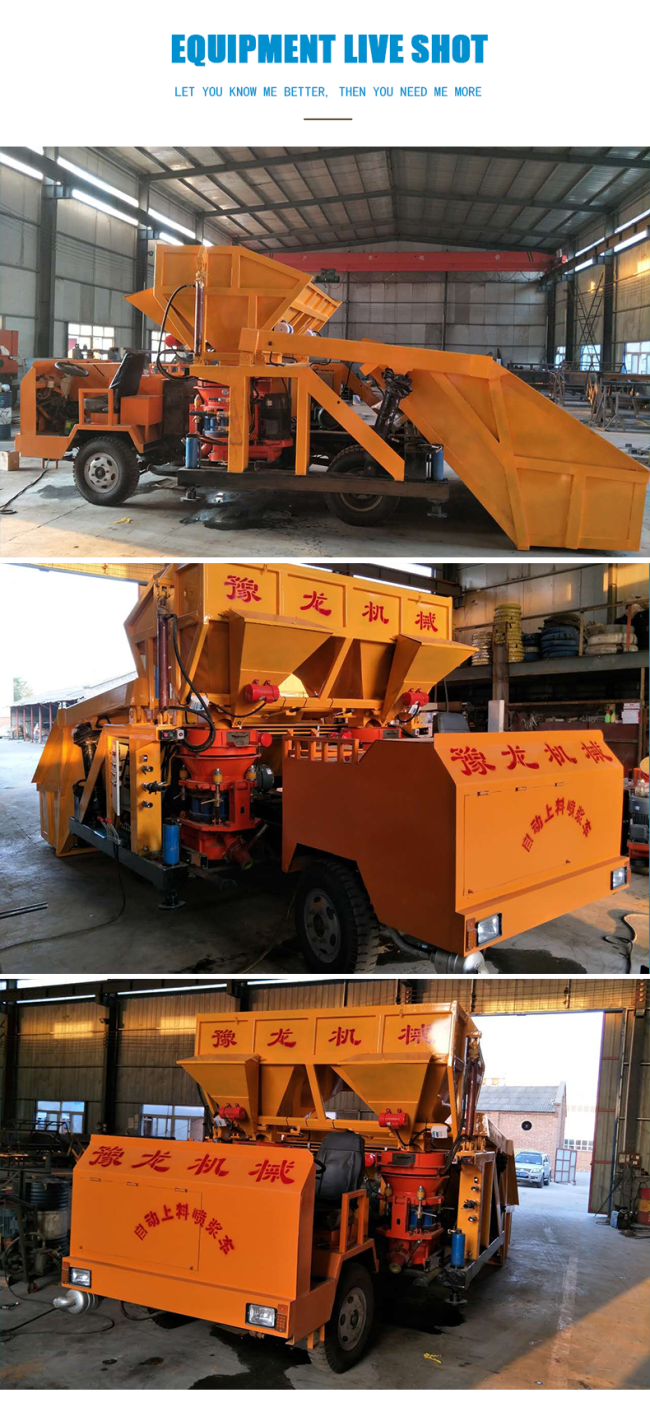

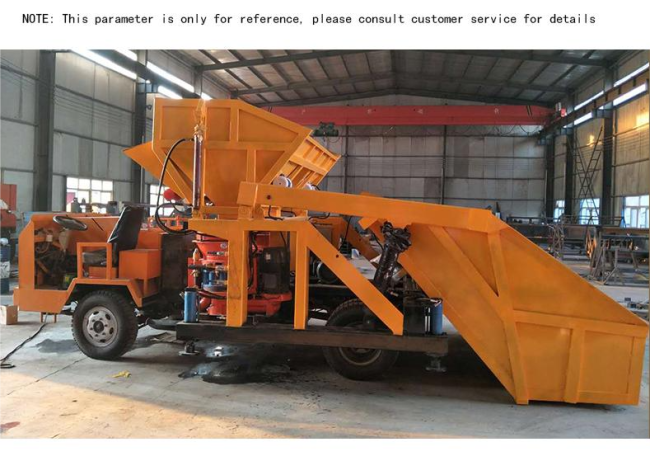

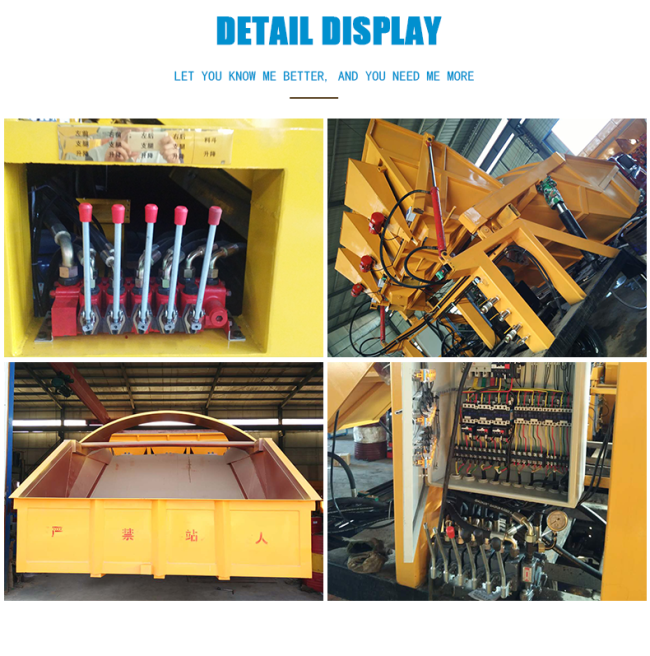

Details Images
large capacity coal mine shotcrete station Concrete Shotcrete Truck Machine With Hopper

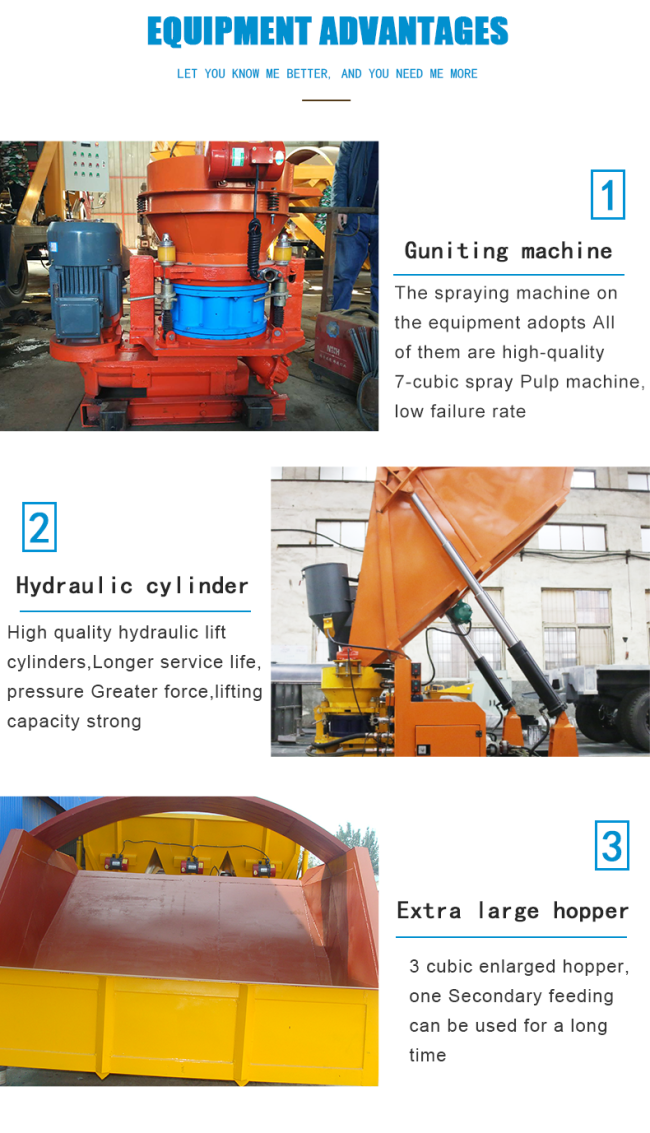

1、Guniting machine：The spraying machine on the equipment adopts Allof them are high-quality 7-cubic spray Pulp machine,low failure rate 2、Hydraulic cylinder：High quality hydraulic lift cylinders,Longer service life,pressure Greater force,lifting capacity strong 3、Extra large hopper：3 cubic enlarged hopper,one Secondary feeding can be used for a long time
Pruduct Show
Our Advantages
Product packaging
The machine body and corresponding accessories are packed with plastic film, and then the machine and accessories are shipped in fumigant-free wooden boxes.
Company Profile
Corporate Culture
Quality partners
Our company has long-term cooperation with many large enterprises at home and abroad, including the world's leading enterprises and national enterprises in the industry, which represents the recognition of our strength by our partners.
Industry certificate
FAQ
1.Q: Are you the original manufacturer?
A: Yes. We are a foreign trade company integrating industry and trade, with our own independent production factory. 2.What are your warranty terms?
A: We provide different warranty periods for different products. For detailed warranty terms, please contact us. 3. Q: Delivery time
A: It takes 3-5 days for inventory products, and customized products need to be determined according to products 4. Q: What's the payment you accept ? A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L.Also we accept the payment such as L/C ,Escrow, Western Union Or PayPal .
