40kW Water-Cooled IP67 Electric Drive Module with Dual-Pump Water Pump Module for Sweepers and Flushers
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

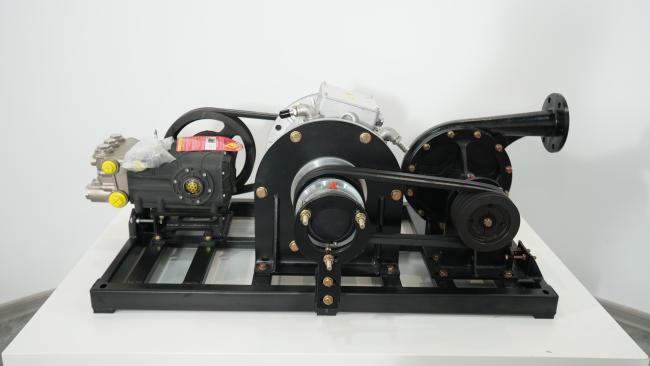

40kW Dual-Pump High/Low Pressure Module
Water-Cooled PMSM, IP67 Protection for Sweepers & Flushers
Product Overview
The Dual-Pump High & Low Pressure Water Pump Module is a powerful, integrated pumping solution engineered for demanding sanitation vehicle applications. It combines a 40kW permanent magnet synchronous motor (PMSM) with dual-pump configuration to deliver both high-pressure and low-pressure water output from a single, compact module.
Designed for continuous duty (S1 operation), this module provides reliable water flow for multiple functions simultaneously—high-pressure washing, dust suppression, and low-pressure irrigation—making it ideal for advanced sweepers, street flushers, and multi-purpose sanitation trucks.
Technical Specifications
| Motor Model | YW540-Y40-2500A |
| Motor Type | 3-Phase Permanent Magnet Synchronous Motor (PMSM) |
| Winding Configuration | Star Connection |
| Cooling Method | Water Cooling |
| Rated Voltage | 380 VAC |
| Battery Voltage | 540 VDC |
| Rated Speed | 2500 rpm |
| Ingress Protection | IP67 |
| Rated Torque | 152 N·m |
| Number of Poles | 4 |
| Rated Power | 40 kW |
| Duty Cycle | S1 (Continuous) |
| Rated Current | 70 A |
| Insulation Class | Class H |
- 40kW PMSM Technology – High efficiency, precise speed control, low maintenance
- Dual-Pump Configuration – Simultaneous high & low pressure output
- Water Cooling System – Superior thermal management for continuous duty
- IP67 Protection – Dust-tight and waterproof for all-weather operation
- 540V DC Compatibility – Ideal for electric and hybrid vehicle platforms
- S1 Continuous Duty – Designed for extended operating hours
- Class H Insulation – Withstands high temperatures for enhanced durability
Typical Applications
- High-pressure washing systems on sweepers and flushers
- Dust suppression spray bars
- Low-pressure irrigation and water transfer
- Multi-function sanitation vehicles
Customization Available
This module is available for OEM/ODM customization, allowing voltage, interface, and performance adjustments to meet your specific vehicle requirements.
